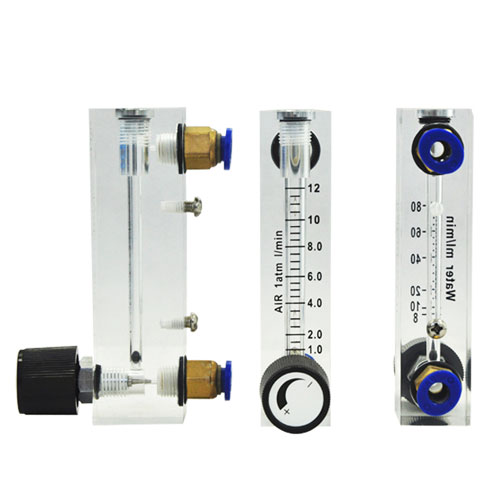

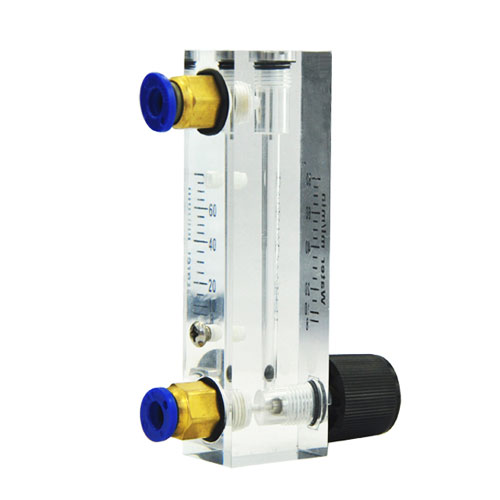

DFG-4T Acrylic material flow meter for small gas and water
The flowmeter bodies are cut and precision machined from solid, clear acrylic plastic blocks. This
construction not only produces a handsome finished product, but permits complete visual inspection.
As a result, the flowmeters are especially popular for medical and laboratory equipment applications.
Datesheet:
Model | Range | Screw thread | Accuracy |
ml/min (Liquid) | L/min (Gas) |
DFG-4T | 6-60 8-80 30-120 40-400 | 0.05-0.5 0.1-1 0.2-2 0.25-2.5 0.6-6 1-4 1-5 1-10 1-12 | directФ6 | +4% |

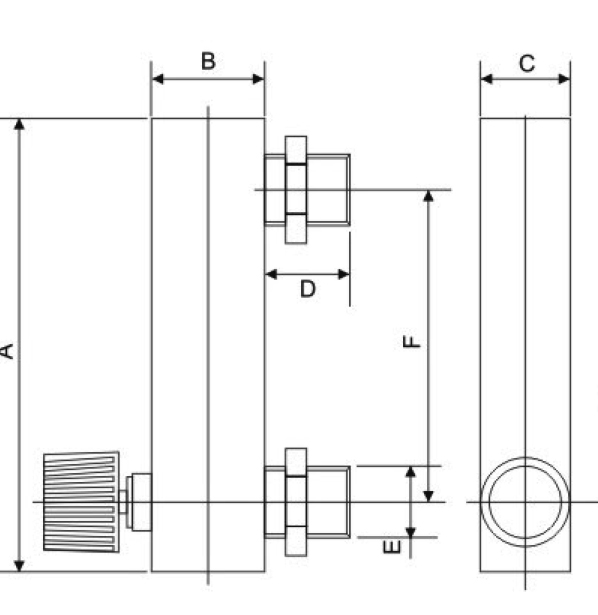

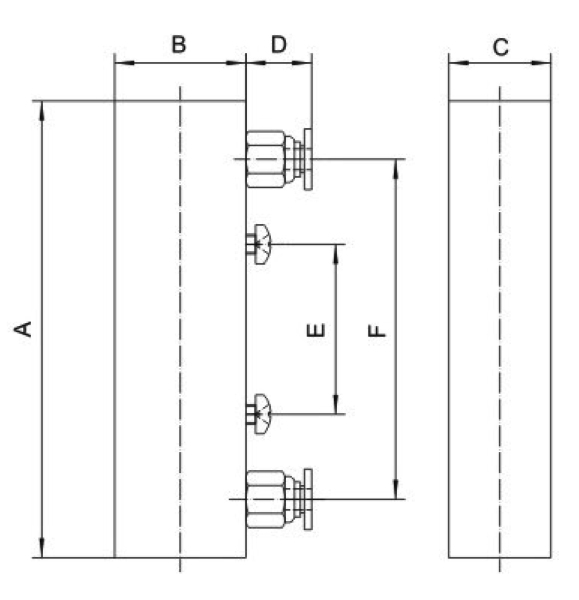

Model
| Size （mm）
|
| A | B | C | D | E | F |
| DFG-4T | 94 | 27 | 21 | 14 | 15 | 70 |
Service: Compatible gases and liquids.
Wetted Materials: Body: acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal Parts: brass standard, stainless steel optional; Float: stainless steel, agate ball.depending on range.
