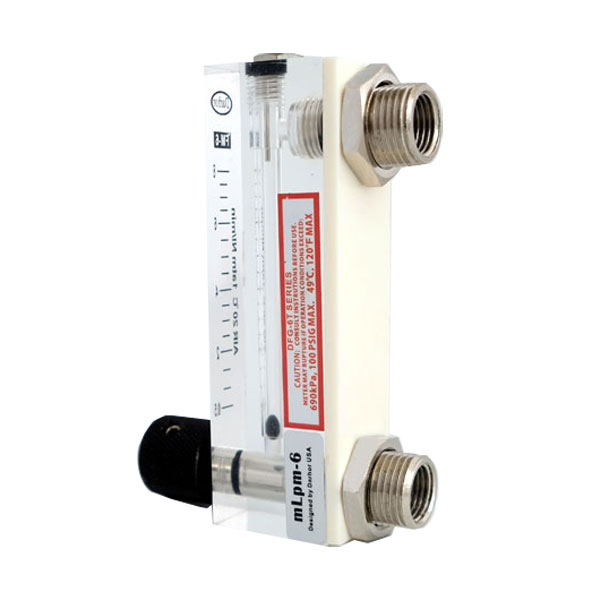

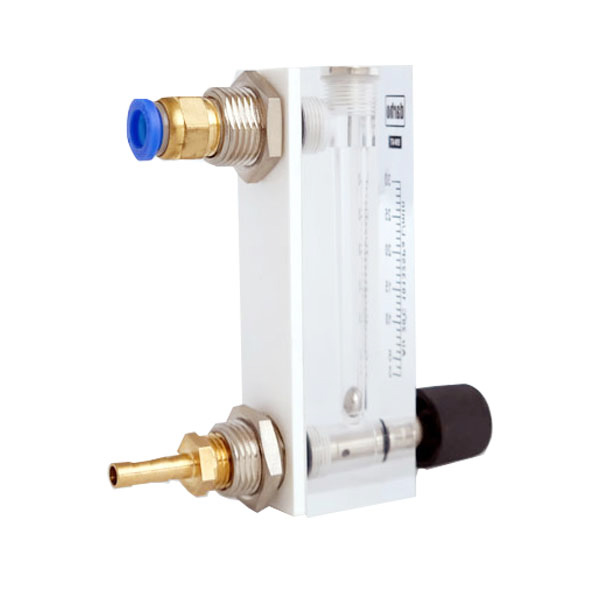

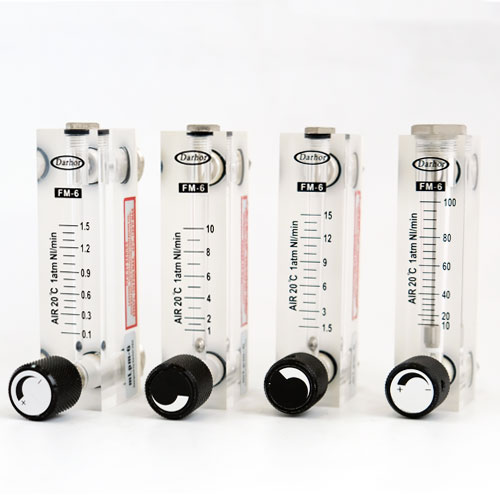

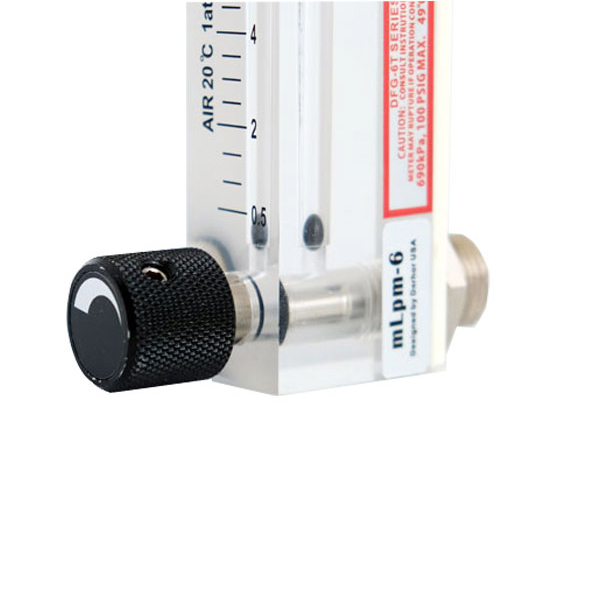

DFG-6T Air /Gas /Oxygen/N2/AR/CO2 Panel mount flowmeter
Datesheet:
Model | Range
|
Screw thread |
Accuracy | |
ml/min (Liquid) | L/min (Gas) | |||
DFG-6T | 6-60 10-70GPH 25-250 16-160 80-400 100-500 100-600 200-800 100-1000 | 0.1-0.8 0.1-1.5 0.1-1 0.3-3 0.4-4 0.5-8 1-5 1-12 2-10 2-20 3-15 3-30 4-20 5-25 6-30 10-60 10-70 10-100 0.05-0.25m3/H 0.04-0.4m3/H |
（F)1/4"BSP
| ±4% |
DFG-8T |
2.5-25LPH 4-45LPH 6-60LPH |
0.16-1.6m3/H 0.1-1m3/H 0.2-2m3/H | ||

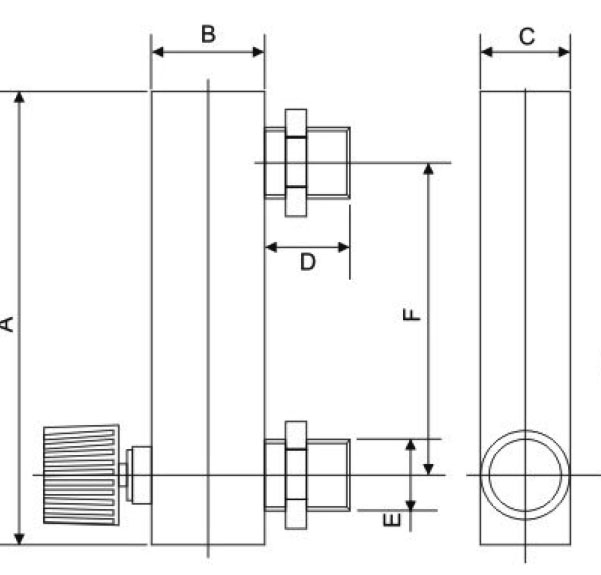

Size:
| Model | Size(mm) | |||||
| A | B | C | D | E | F | |
| DFG-6T | 102 | 30 | 25 | 20 | M18×1.5 | 77 |
| DFG-8T | 110 | 25 | 25 | 20 | M18×1.5 | 80 |

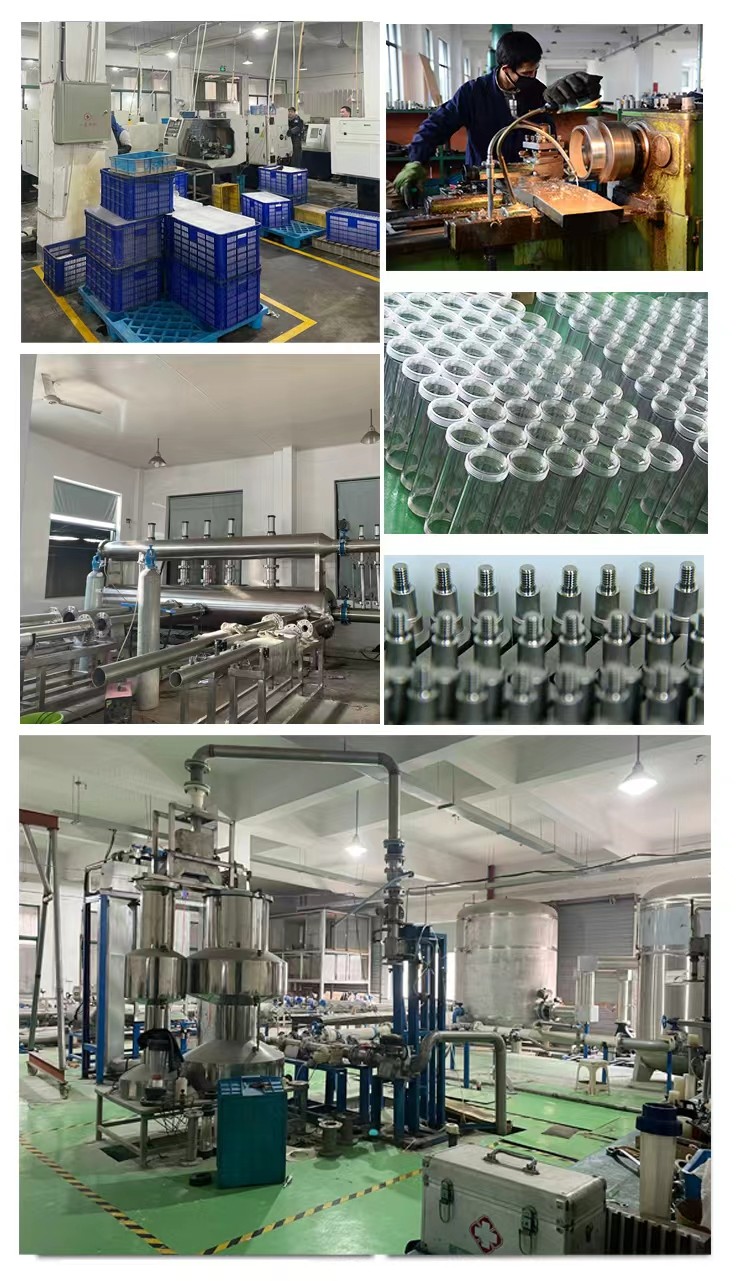

Factory:
