The flow meter cnstruction is made of high strength engineering plastics (PC Polycarbonate or polysuphone).
Which is high temperature resistant and corrosion-proof.allows multiple locations of installation.
Flow table:
| Model | Range | Thread | Material | |||
| Water 20℃ | Air 101325pa20℃ | |||||
| GPM | LPM | GPM | LPM | |||
EV 15 20 25 | 0.5-5 1-7 1-10 1-16 3-18 4-28 | 2-20 4-26 4-35 5-60 15-65 20-100 | 80-320 160-480 240-720 320-1100 | 5-20 10-30 15-45 20-70 | 1/2"NPT、BSPT、 BSP(M、F) 3/4"NPT、BSPT、 BSP(M、F) 1"NPT、BSPT、 BSP(M、F) | BRASS SS PP P VC |
EV 40 50 | 3-25 5-50 8-80 10-100 | 12-90 20-200 30-280 40-380 | 250-1500 350-2200 450-4500 | 15-95 20-140 25-275 | 11/2"NPT、BSPT、 BSP(M、F) 2"NPT、BSPT、 BSP(M、F) | |

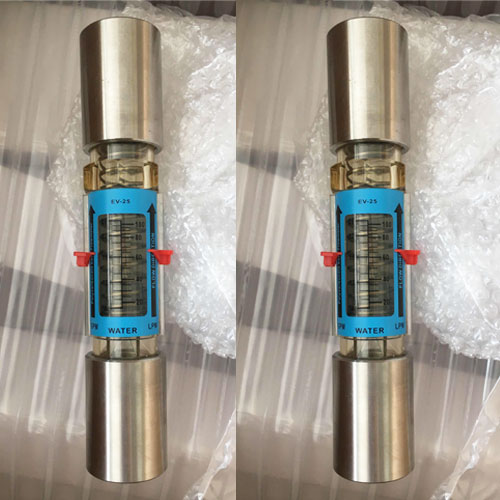

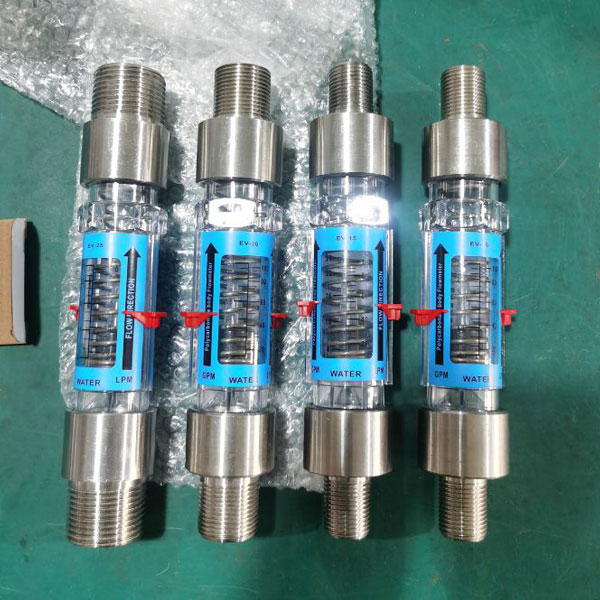

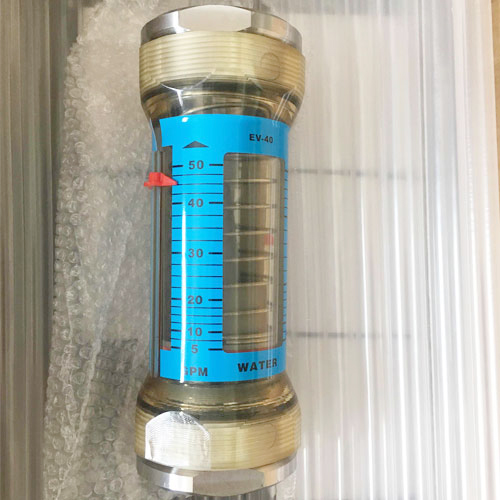

Physical photo：

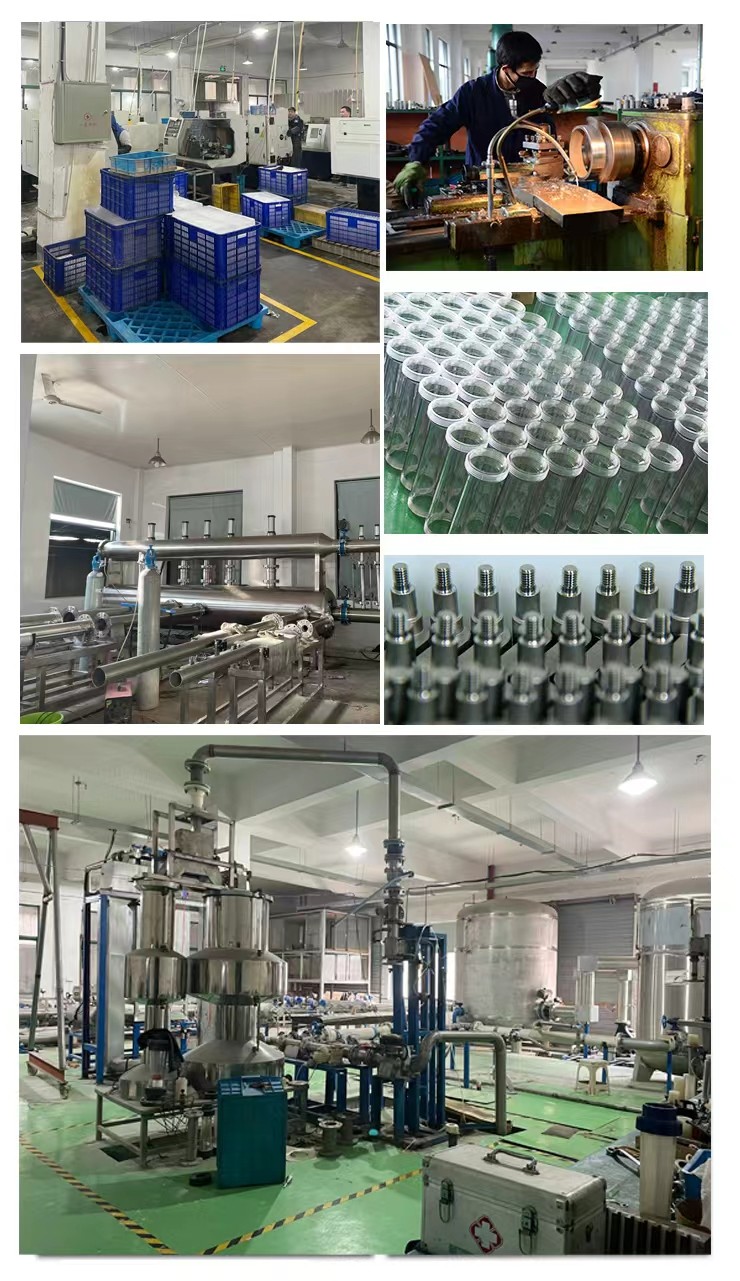

Factory:
