DH45-T Material Datasheet
| Model | Joint | Male | Female | Elbow | Float |
DH45-15E(T) DH45-15G(T) | PVC | PA6 | / | PVC | 316 |
DH45-15EC(T) DH45-15GC(T) | PVC | PA6 | PA66 | PVC | 316 |
DH45-ET/GT Datasheet

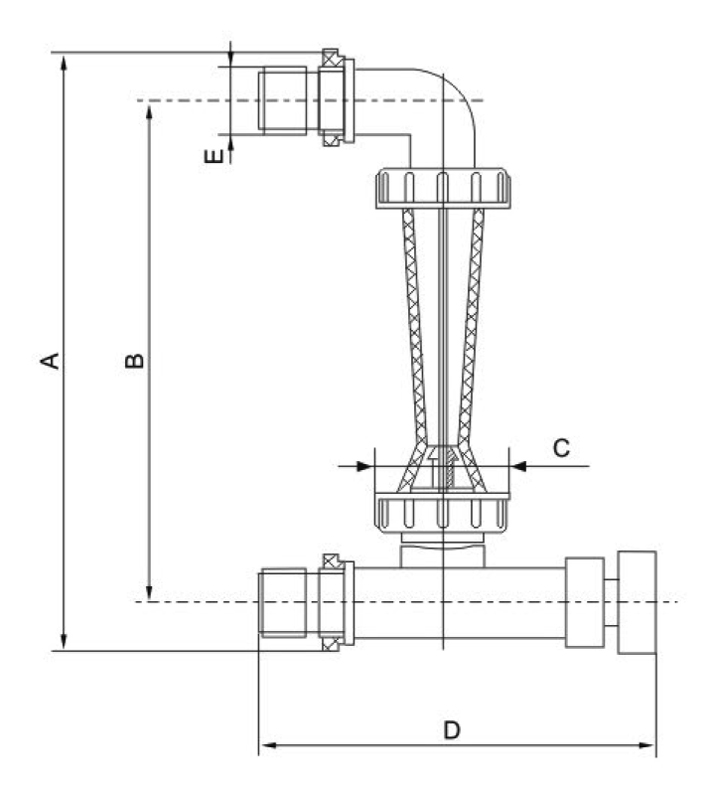

| Model | DN | Range | Accuracy | Temp℃ | Pressure | Size(mm) | |||||
| GPM | LPM | A | B | C | D | E | |||||
DH45-15ET DH45-15GT | 15 | 0.1-1 0.2-2 0.5-5 | 0.5-4 1-7 1.8-18 | ±4% | 0-60℃ | ≤1MPa | 187 | 157 | 42 | 125 | 1/2“NPT 1/2“BSP |
| 0-100℃ | |||||||||||
DH45-15ECT DH45-15GCT | 15 | 0.1-1 0.2-2 0.5-5 | 0.5-4 1-7 1.8-18 | 0-60℃ | 250 | 220 | 50 | 125 | 1/2“NPT 1/2“BSP | ||
| 0-100℃ | |||||||||||
