Working medium: weak acid. weak alkalinity. air. liquid

Medium temperature: -10-80C

Environment temperature: -20-65C

Working pressure: details see specification

Valvebody material: SS316

Sealing material: PTFE + VITON(option EPDM)

Interface: Thread. flange

Working voltage: low power coil ES03-5 10(lead wire)

                                    AC220V start 106VA,maintain 5VA;

                                    AC110V start 85VA,maintain 8VA;

                                    DC24V start 54W,maintain 8W.

Option:low power coil DIN type,Encapsulated Ex-proof coil,normal coil D03-510 AC220V 40VA, DC24V 30W。

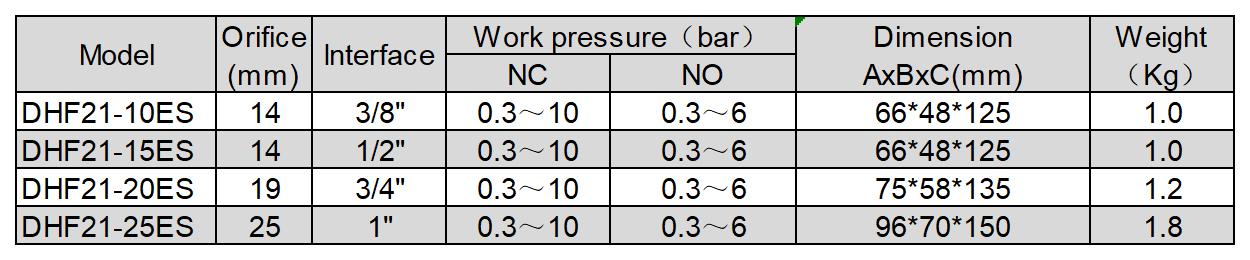

DHF21-S series solenoid valve specification
