Working medium:liquid(acid,alkali),air

Medium temperature:UPVC-5~60℃,CPVC-10~80

Ambient temperature:-10～50℃

Working pressure:0.3～6 bar

Working type:pilot operated(NC/NO)

Valvebody material:UPVC/CPVC

Sealing material:VITON,optional EPDM

Interface:G thread NPT thread

Working voltage:DN10:AC220V Start30VA hold6VA,AC110V Start95VA hold9VA,DC24V Start44Whold6W

                           DN15~25:AC220V Start106VA hold5VA,AC110V Start85VA hold8VA,DC24V Start54Whold8W

                           DN32~50:AC220V Start140VA hold8VA,AC110V Start82VA hold7VA,DC24V Start54Whold8W

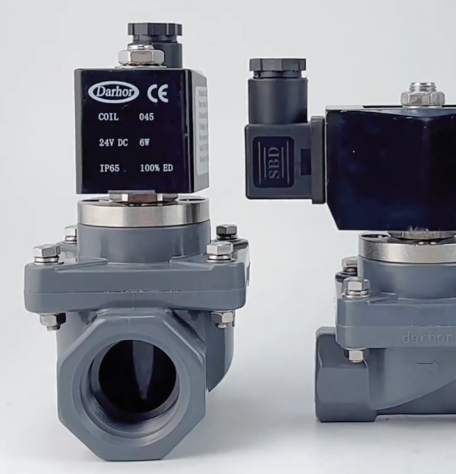

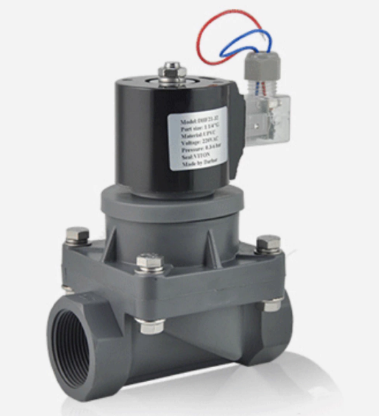

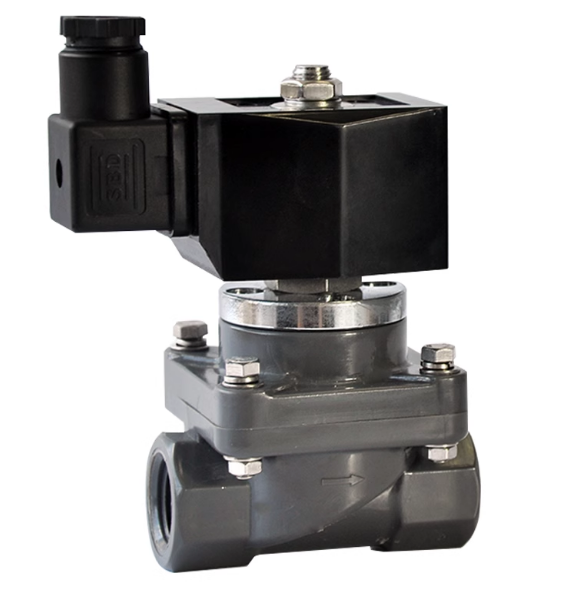

PVC solenoid valve, Normally Closed, with Coil Y82B/YD1B
