Woking medium:liquid(acid,alkali),air

Medium temperature:UPVC(-5℃-60℃),CPVC(-10℃-80℃)

Ambient temperature:-10~50℃

Working pressure:0.3~6 bar

Working type:pilot operated(NC/NO)

Valvebody material:UPVC,CPVC

Sealing material:VITON,optional EPDM

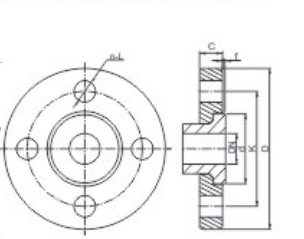

Connection type:flange

Working voltage:DN15~25:AC220V Start106VA hold5VA,AC110V Start85VA hold8VA,DC24V Start54Whold8W

                           DN32~50:AC220V Start140VA hold8VA,AC110V Start82VA hold7VA,DC24V Start54Whold8W

Coilparameters:slowly heating-upES coil   AC220-240V,AC110V,50/60Hz,9VA,DC24V8W,IP65,H degree

Other voltage can be customized

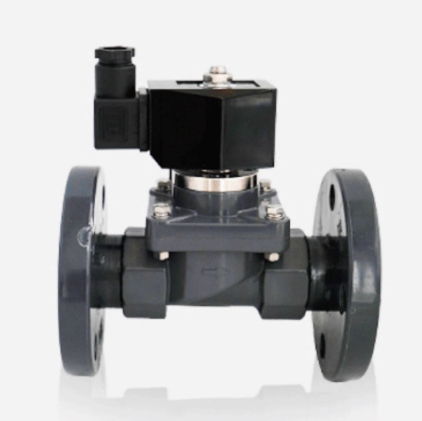

PVC solenoid valve, Normally Closed, with Coil Y82B/YD1B
