Working medium:Corrosive(liquid,gas)

Ambient temperature:-10℃~+50℃

Medium temperature:-10℃~80℃

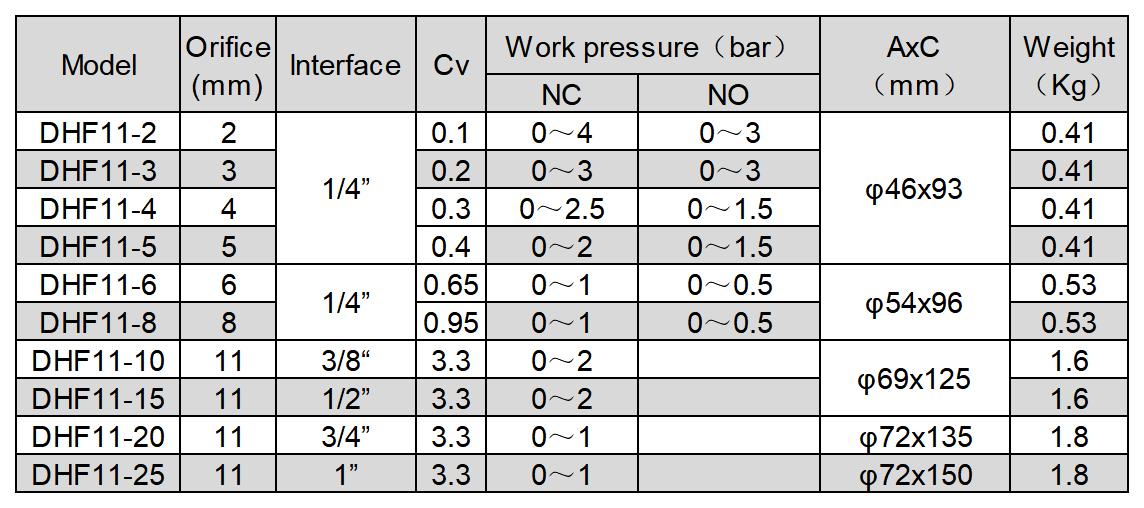

Working pressure:0~4 bar(see table below)

Working type:direct acting(NC,NO)

Valvebody material:PTFE

Sealing material:VITONInterface thread:G thread(standard)

Working voltage:ES low temp coil,IP65

ZCF-2~8ES:AC220V Start80VA hold4VA,AC110V Start69VA hold5VA,DC24VStart28Whold4W

ZCF10~25ES:AC220V Start140VA hold8VA,AC110V Start82VA hold7VA,DC24V Start54Whold8W

Other voltages can be customized.Thelength of coil lead is 0.2M as standard,and the length can be customized.

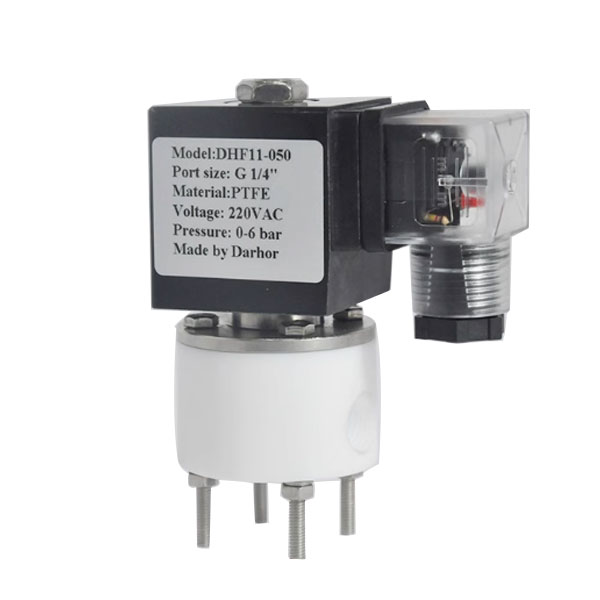

chemical solenoid valve, Normally Closed, with Coil Y82B/YD1B
