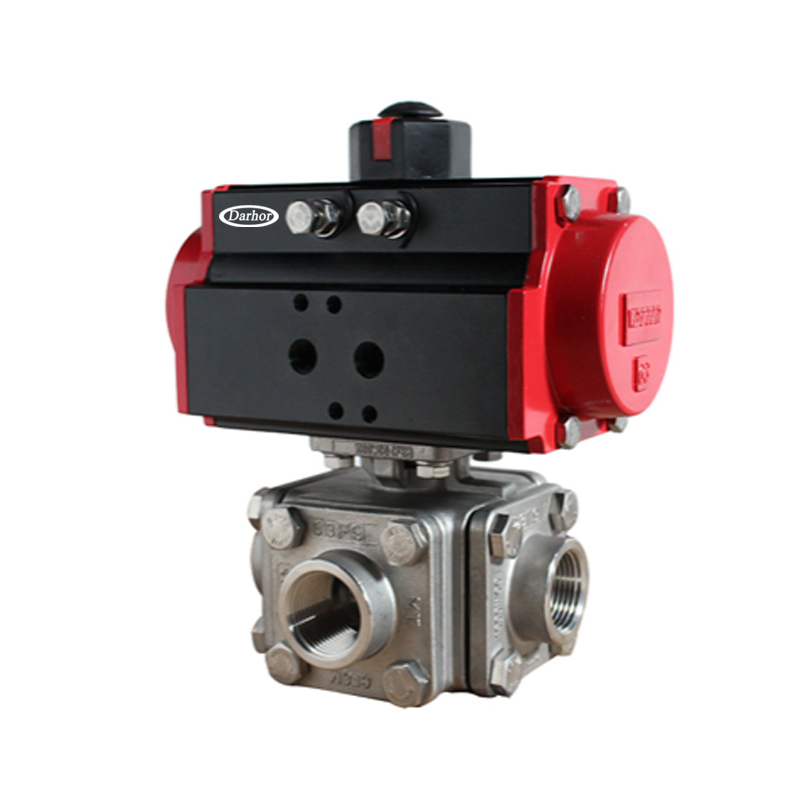

Pneumatic 3 WAY Ball valve

Pneumatic 3 WAY Ball valve


Product name:Pneumatic 3 WAY Ball valve
Item:DHBV-P
Details:
 Standard technical parameters

Valve body

Nominal diameter: DN15-DN300

Body material: WCB, 304, 316

Connection:Flange, screw thread

Pressure class:PN1.6-4.0MPa

Structure: 3way T/L- type float ball core

Design and manufacturing standards

Design and manufacture: GB/T12238-2008

Connection standard: JB/T79.1-1994

Structure length: GB/T12221-2005

Pressure testing: GB/T13927-2008

Valve components

Seal sealing: PTFE:-30~180℃ , PPL:-30~250℃

Hard seal: -30~450℃

Hard alloy: Surface spray welding, tungsten nitride

Core material: 304, 316, 316L; Hard seal core surface spray

welding, tungsten nitride.

Stem material: 304

Applicable medium: Water, liquid, gas, oil, powder, steam, acid

and alkali corrosive medium.

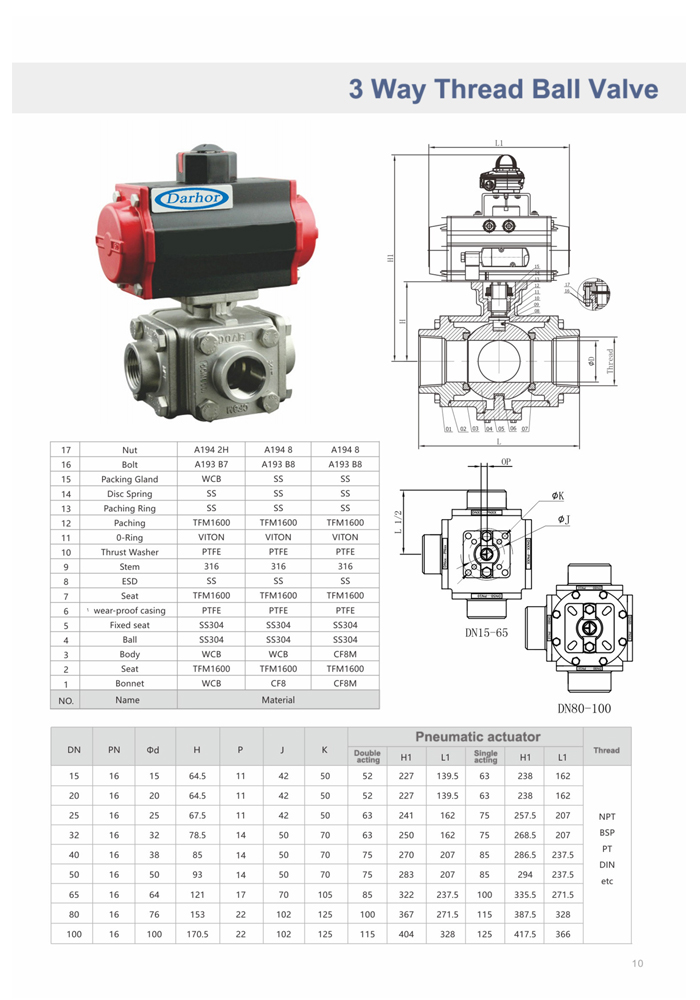

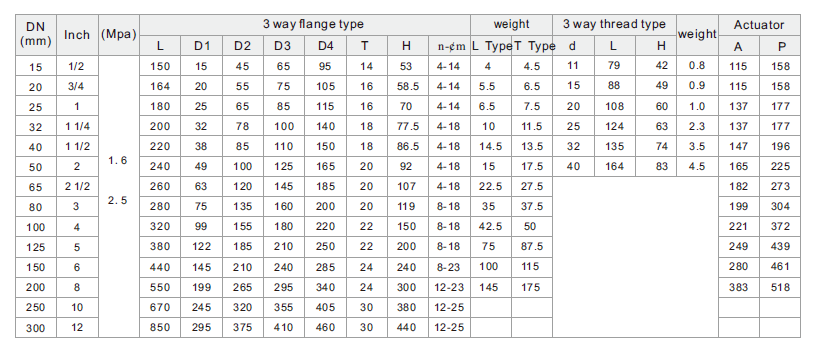

Note: Valve body, disc, seat material characteristics please as table.
