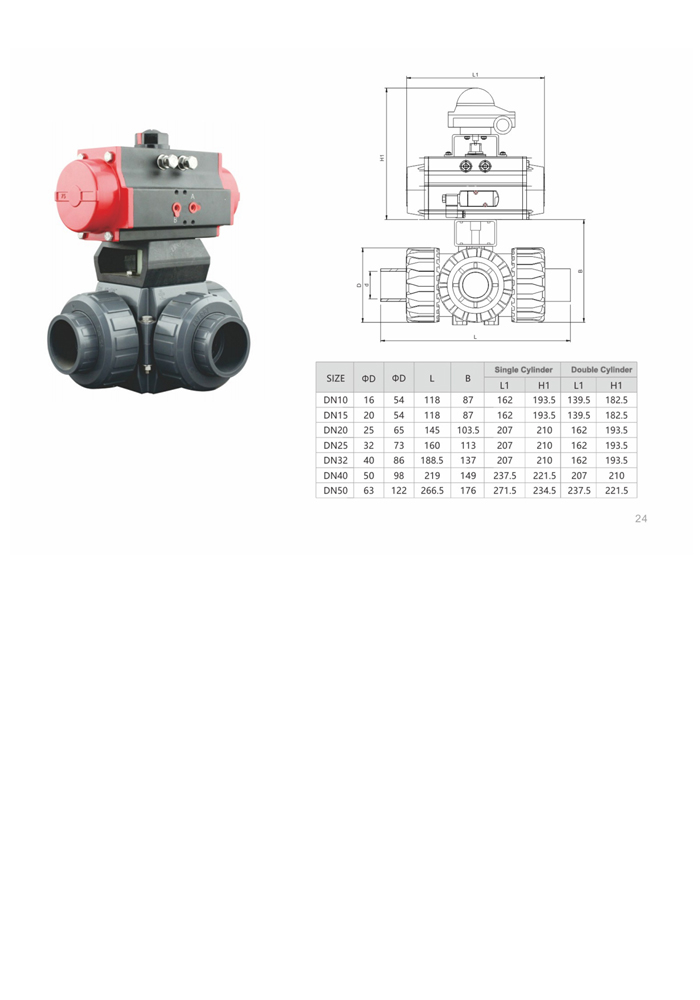

Pneumatic 3 way UPVC Plastic Ball Valve

Pneumatic 3 way UPVC Plastic Ball Valve


Product name:Pneumatic 3 way UPVC Plastic Ball Valve
Item:DHBV-E
Details:

Product name: Pneumatic 3 way UPVC Plastic Ball Valve
Model: DHBV-E

Nominal diameter: DN15~DN100
Body material: UPVC, PPH, CPVC,PVDF,PP
Connection type: Double union, flange
Pressure range: PN1.0MPa, PN1.6MPa
Structure:2 way, 3 way
Seat sealing: PTFE
Core material: UPVC, PPH, CPVC, PVDF,PP
Stem material: SS410,304
Applicable medium: water, liquid, gas, oil, acid, alkali corrosive medium
Design and manufacture: API609 EN593
Connection standard: ISO5272 API609 EN558-1
Top flange:ISO5211
Pressure testing: ISO5208 API598
