Pneumatic 3 Pieces Ball valve

Pneumatic 3 Pieces Ball valve


Product name:Pneumatic 3 Pieces Ball valve
Item:DHBV-P
Details:
 Standard technical parameters

Valve body

Nominal diameter: DN15-DN100

Body material: WCB, 304, 316,316L

Connection: Thread

Pressure class: PN1.6-PN6.3MPa

Structure: Float ball core

Design and manufacturing standards

Thread type:G,NPT,BSPT,BSP,DIN259/2999

Top flange:ISO5211

Pressure testing:ISO5208 API598

Valve components

Seat sealing: PTFE:-30~180℃ , PPL: -30~250

Core material: 304, 316, 316L

Stem material: 304

Applicable medium: Water, liquid, gas, oil, acid, alkali corrosive medium.

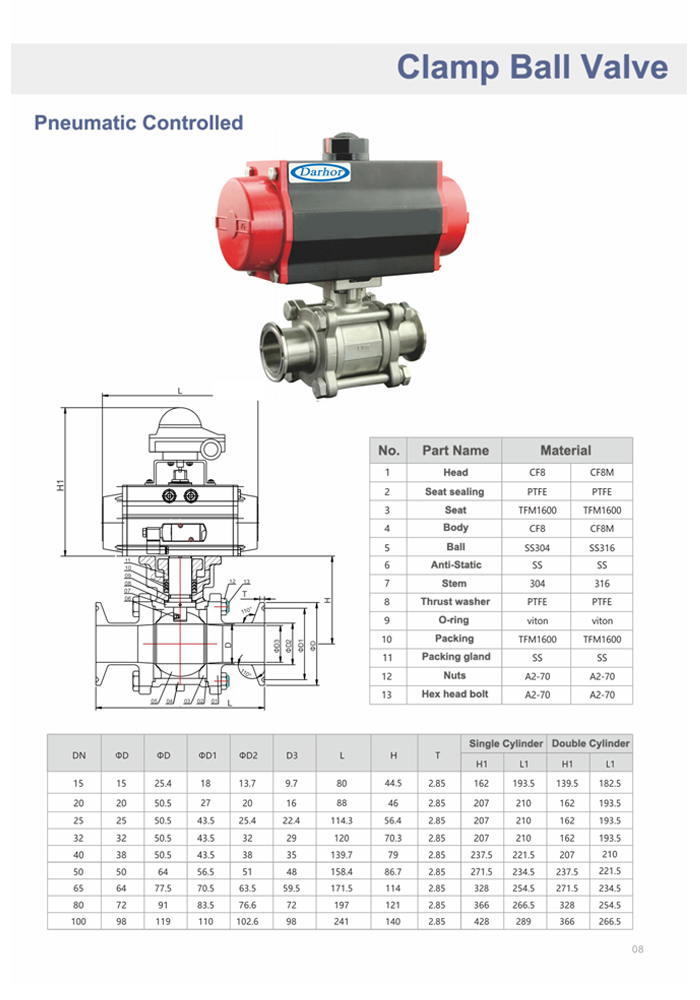

Note: Valve body, disc, seat material characteristics please as shown in table.
