Pneumatic 3 way Thread Ball Valve

Pneumatic 3 way Thread Ball Valve

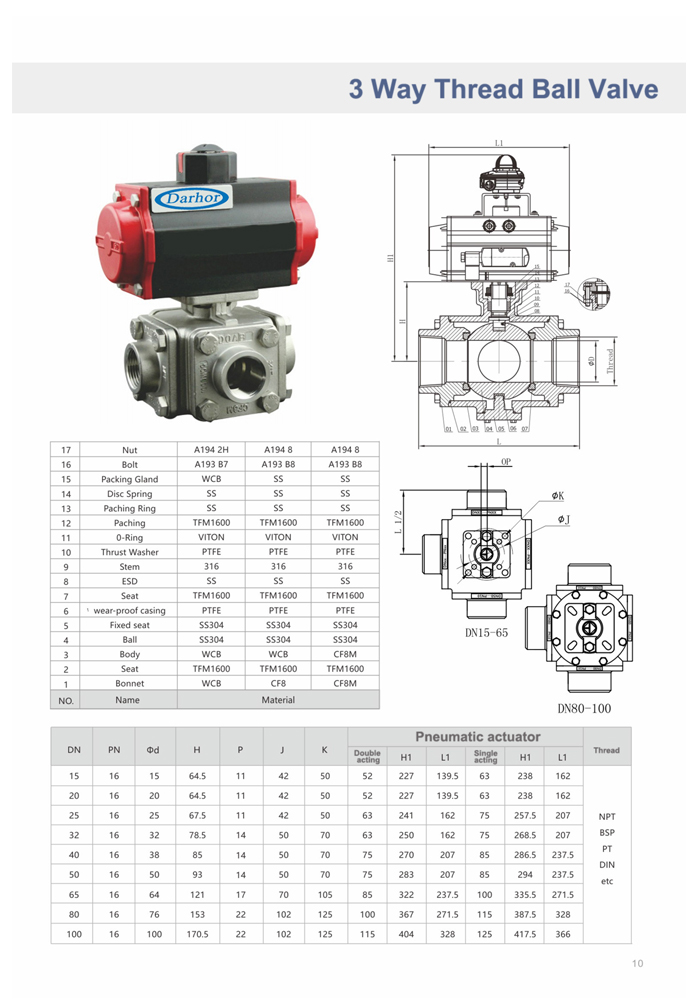

Product name:Pneumatic 3 way Thread Ball Valve
Item:DHBV-E
Details:

Product name: Pneumatic 3 way Thread Ball Valve
Model: DHBV-E


Nominal diameter: DN15~DN100
Bodymaterial: WCB, 304, 316,316L
Connection: thread
Pressure range: PN1.6-6.3MPa
Structure: Float ball core
Thread type:G, NPT, BSPT, BSP, DIN259/2999
Top flange: ISO5211
Pressure testing:ISO5208 API598
Seat sealing:PTFE:-30~180℃,PPL:-30~250℃
Core material:304, 316,316L
Stem material: 304
Applicable medium: water, liquid, gas, oil, acid , alkali corrosive medium.
