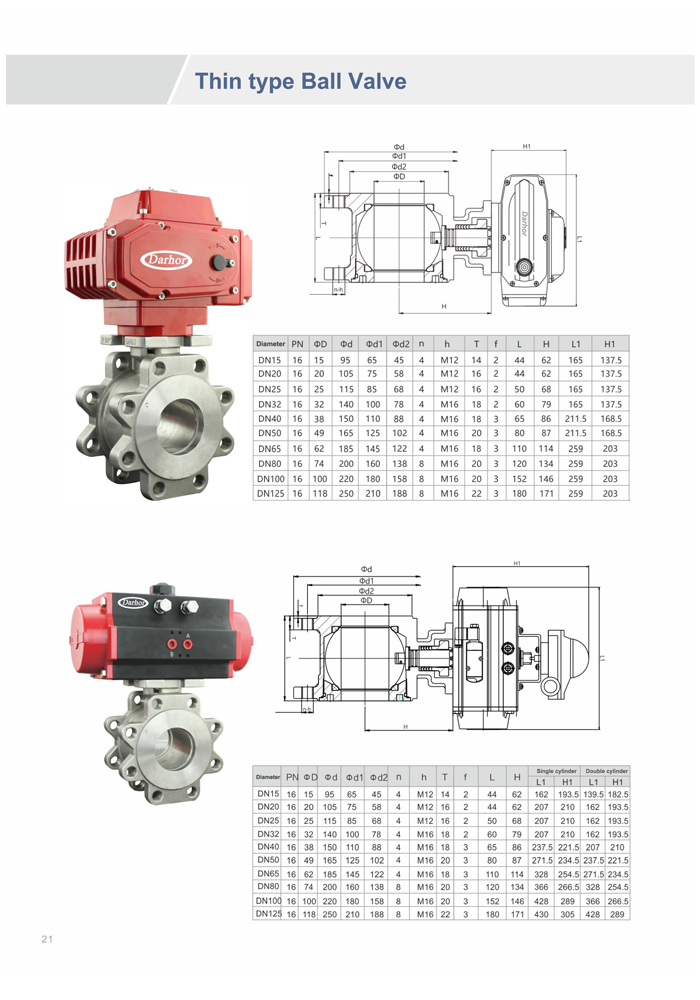

Electric Thin type Ball Valve

Electric Thin type Ball Valve


Product name:Electric Thin type Ball Valve
Item:DHBV-E
Details:

Product name: Electric thin type ball valve
Model: DHBV-E

Nominal diameter: DN15~DN150
Body material: WCB, 304, 316
Connection: Thin wafer type
Pressure range:PN1.6~4.0MPa
Structure: Float ball valve
Design and manufacture:GB/T12237/1989
Connection standard:JB79
Fire test: API60 4 th 1993
Pressure testing: GB/T13927-1992
Seat sealing: PTFE:-30~180℃, PPL:-30~250℃
Core material:304, 316, 316L
Stem material:SS410,304
Applicable medium: water liquid, gas, oil, powder, steam etc.








[Previous]      [Next]     [ Back ]




Related Products :

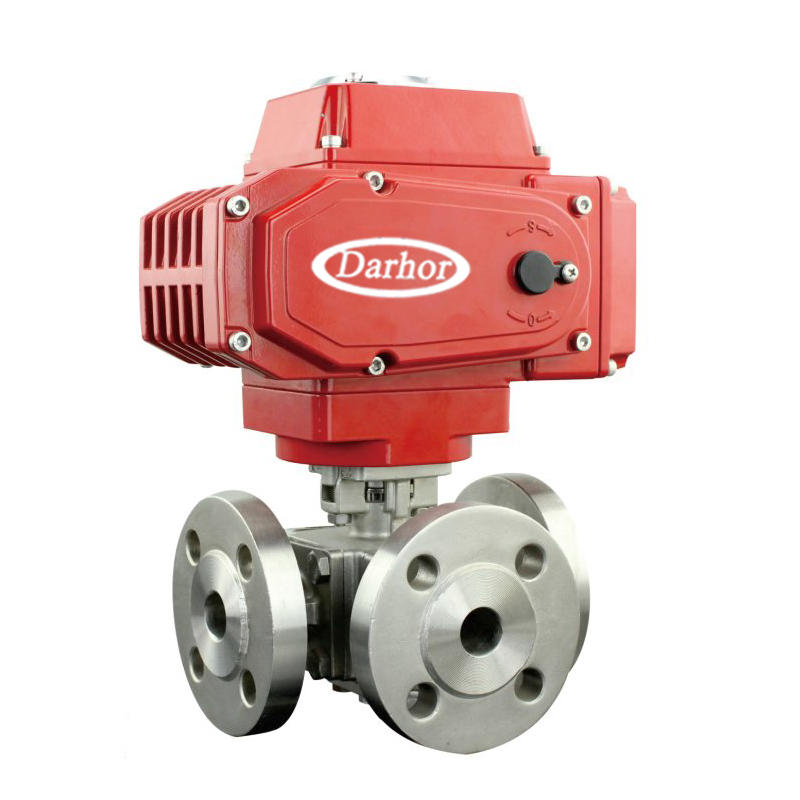

Electric 3 way Flange Ball Valve

Electric 3 way Flange Ball Valve

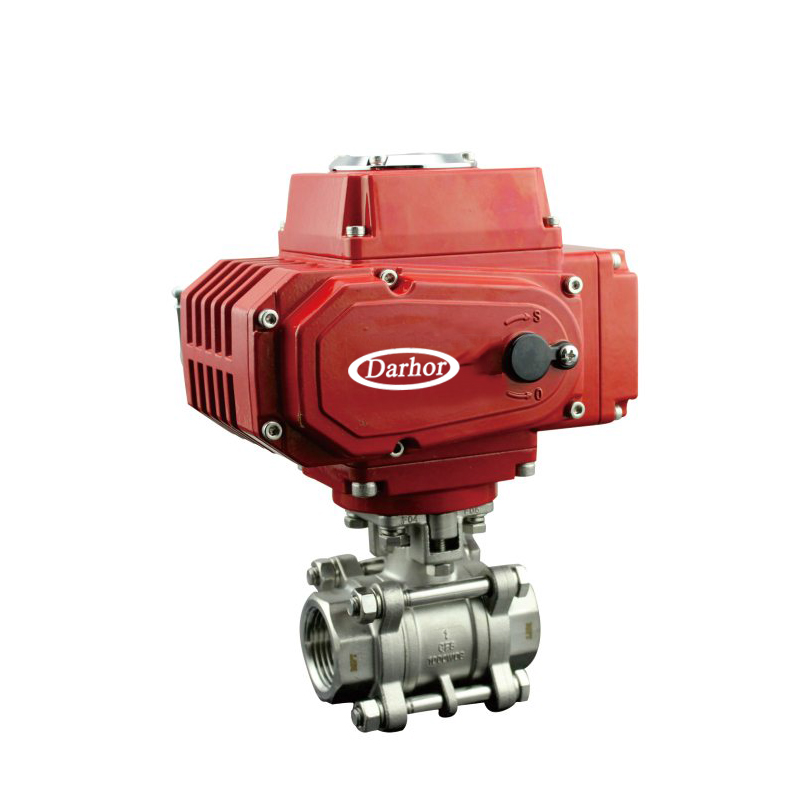

Electric 2 way Thread Ball Valve
