Electric Fluorine Ball valve

Electric Fluorine Ball valve


Product name:Electric Fluorine Ball valve
Item:DHBV-E
Details:
 Fluorine lined ball valve with high-pressure injection molding process, lined with corrosion resistance,

aging resistance of PTFE, has the corrosion resistance and reliable sealing to acid, alkali and other

corrosive medium. Widely used in chemical, petroleum, metallurgy, electric power industry.

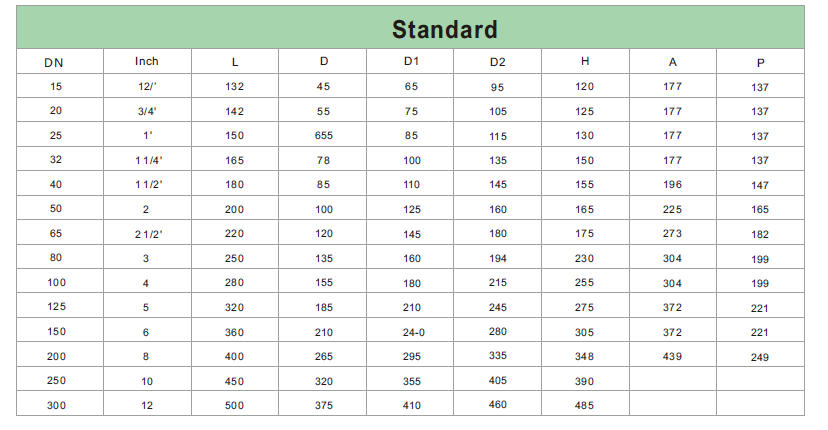

Standard technical parameters

Valve body

Nominal diameter: DN15-DN300

Body material: WCB, 304, 316,316L

Connection: Flange GB/T9113.1-2000 ANSI B16.5a

Structure length: GB12221 ASME B16.10

Design and manufacture: GB/T12237

Pressure testing: GB/T13927-92 API598

Pressure class: PN1.6-4.0MPa

Structure: Float ball core

Valve components

Seat sealing: PTFE:-30~180℃ ,

Valve lining: PTFE

Stem material: 304

Applicable medium: Strong acid, alkali, corrosive medium.

Performance

Leakage: Zero leakage
