Specifications

Working medium:liquid,air,light oil(viscosity≤20cst)

Ambient temperature:-20℃~+65℃

Medium temperature:-10~+80℃

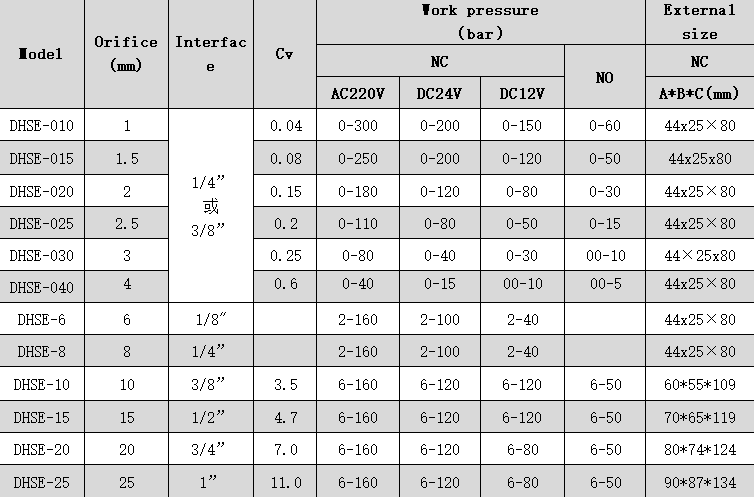

Working pressure:2~160bar(details see specification)

Working type:pilot operated

Interface;G thread,NPT thread

Valvebody material:SS304

Sealing material:PTFE

Working voltage:ES low power coil AC220V(start 130VA,maintain 6VA),DC24V(start 44W,maintain 6W) IP65 medium temperature>80℃,can choose normal coil、other voltage can be customized。

Options: encapsulated Ex-proof coil(NC:AC220V start 56VA maintain 5VA,DC24V start 40W maintain 4W;

               NO:AC220V start 90VA,maintain 7VA,DC24V start 55W maintain 5W;)IP65

This series is ULcertified
