Specifications

Working medium:steam,hight temperature liquid(viscosity≤20cst)

Ambient temperature:-20℃~+65℃

Medium temperature;-5~180℃

Working pressure:0.5~16 bar

Working type:pilot operated,(NC)

Sealing material：PTFE

Valvebody material:Brass

Interface:G thread,NPT thread

Working voltage:AC220~240V,AC110V,50/60Hz,50VA,DC24V/12V32W,IP54H degree

Options：Rc thread

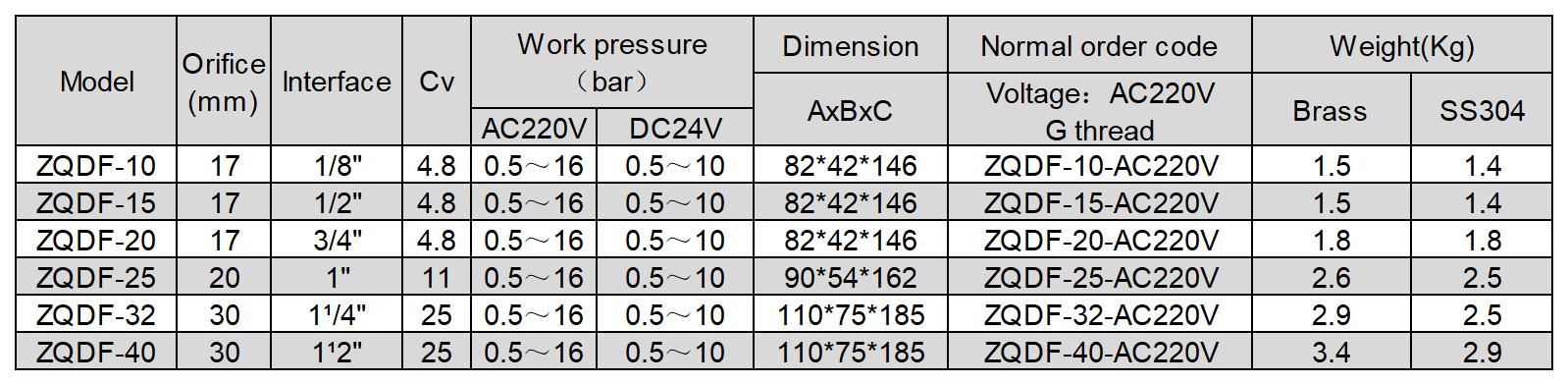

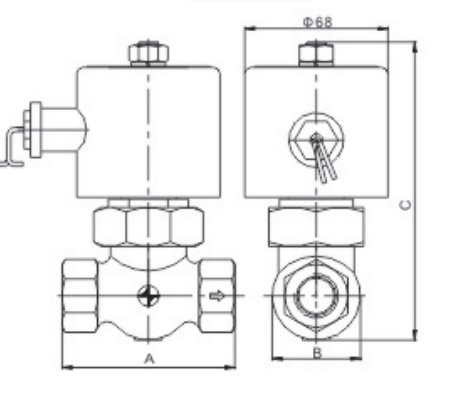

ZQDF-series solenoid valve drawing
