Specifications

Working medium:liquid nitrogen,liquid oxygen

Ambient temperature:-20℃~+65℃

Medium temperature:-196℃+65℃

Working pressure;0~8 bar

Working type;direct acting(NC)

Valvebody material:SS304

Sealing material:PCTFE

Working voltage:AC220V42W、AC110V 36W、DC24V 30W

Coil feature:iron shell with rectifier IP54

Note:AC220V/110V,coil connector with proper rectifier,can not change randomly

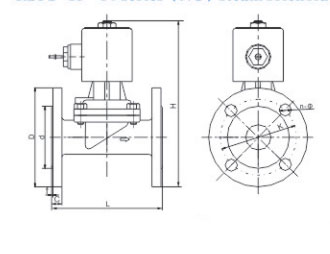

DHWDRY-series solenoid valve drawing
