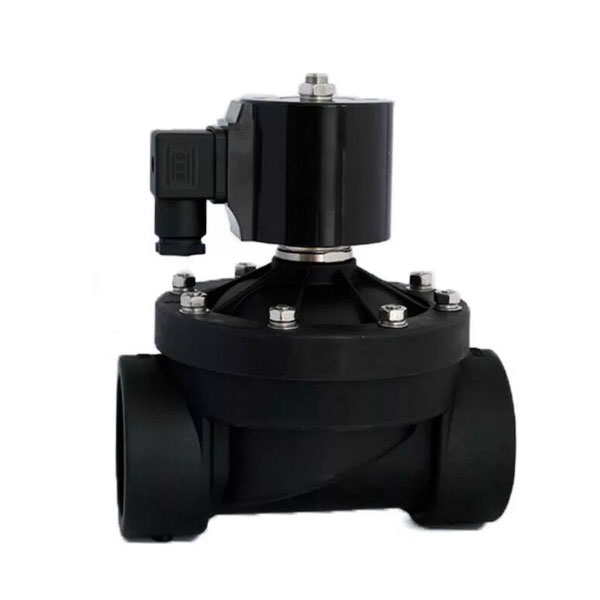

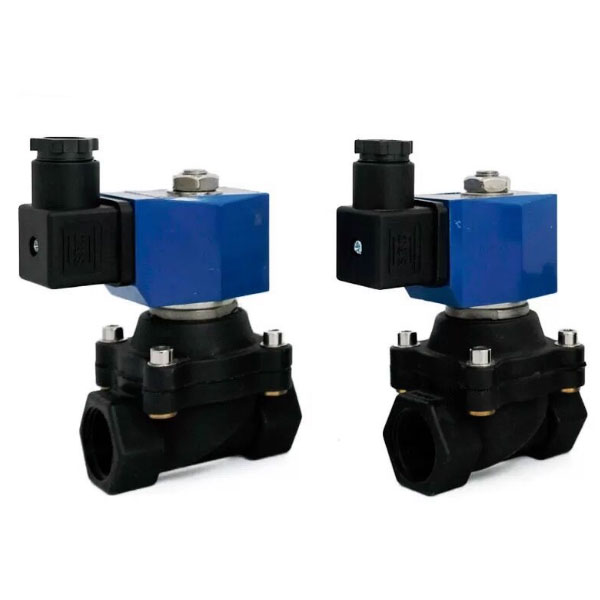

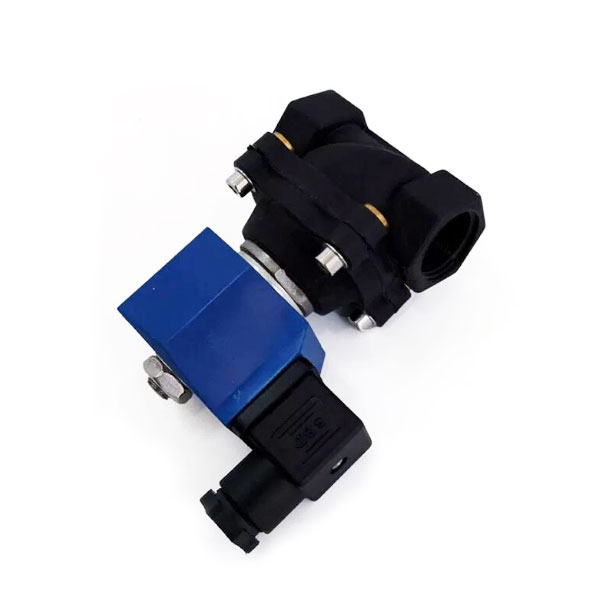

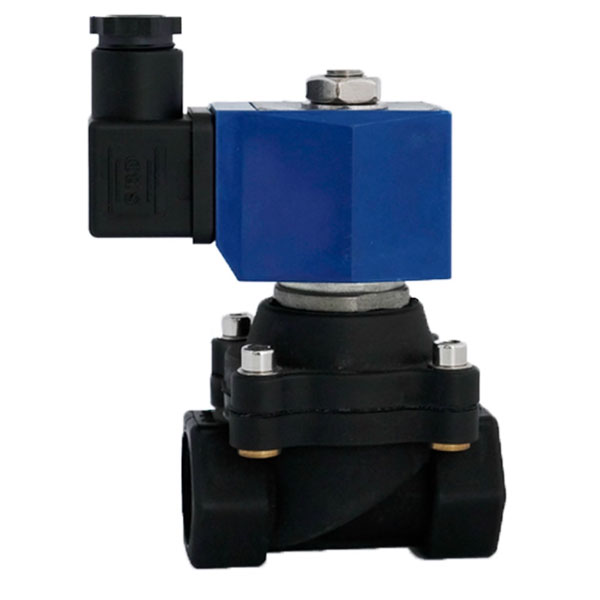

DW51 plastic direct acting solenoid valve

Specifications

Working medium:water,liquid,gas

Ambienttemperature:-20℃~+65℃

Fluid temperature:-10~+80℃

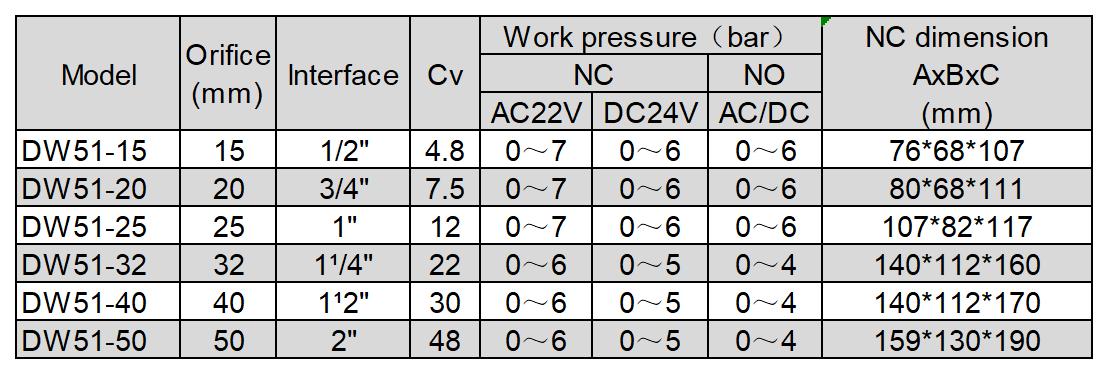

Working pressure:0~7bar(See the table below for details)

Working type:semi-direct acting(NC,NO)

Body material:PA66(made in Germany)

Sealing material:NBR(fluid temperature-10~80℃)

Interface thread:G thread,NPT thread

Working Volatge:DN15~20:AC220V20VA,DC24V20W

DN25:AC220V40VA,DC24V30W.DN32~50:AC220V 30VA,DC24V 38W IP65H degree

Optional:ES low temp coil(DN10~20mm AC220V Start64VA,hold4VA,DC24V Start38W,hold4W

                                      DN25mm AC220V Start 106VA,hold5VA,DC24V Start54W,hold8W

                                      DN32~50mm AC220V Start140VA,hold8VA,DC24V Start54W,hold8W)IP65

Ex encapsulated explosion-proof coil(DN10~25mmAC220V Start90VA,hold7VA,DC24V Start55W,hold5W

                                                      DN32~50mm AC220V Start140VA,hold9VA,DC24V Start54W,hold8W)IP65

FS waterproof coil IP68
