DW31 Normally Closed Solenoid Valve

Working medium:water,liquid,gas,light oil(viscosity≤20cst)

Ambient temperature:-20℃~+65℃

Fluid temperature:-10~80℃(NBR)

Working type:semi-direct acting

Working pressure:0~10bar(see specification table for details)

Sealing material:NBR(-10~80℃)

Body material:Brass(HPb59-1A),stainless steel Ss304

Interface thread:G thread,NPT thread

Working Voltage:DN10~20:AC220V20VA,DC24V20W,DN25:AC220V40VA,DC24V 30W,

                        DN32~50:AC220V 30VA,DC24V38W,Plastic coil terminal,IP65,Hdegree

Optional:NC ES low temp coil(DN10~20mm AC220V Start64VA,hold4VA,DC24V Start38W,hold4W

                                            DN25mm AC220V Start 106VA,hold5VA,DC24V Start54W,hold8W

                                            DN32~50mm AC220V Start140VA,hold8VA,DC24V Start54W,hold8W)IP65

Ex  encapsulated explosion-proof coil(DN10~25mmAC220V Start90VA,hold7VA,DC24V Start55W,hold5W

                                                       DN32~50mm AC220V Start140VA,hold9VA,DC24V Start54W,hold8W)IP65

FS waterproof coil IP68

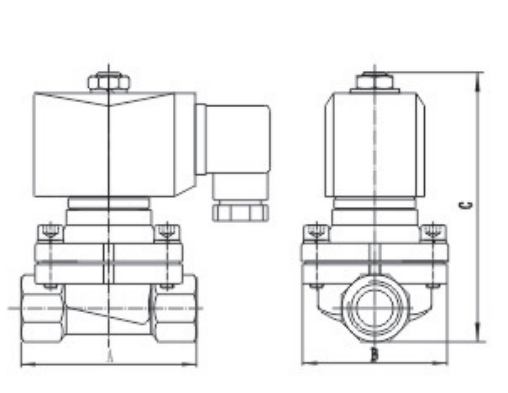

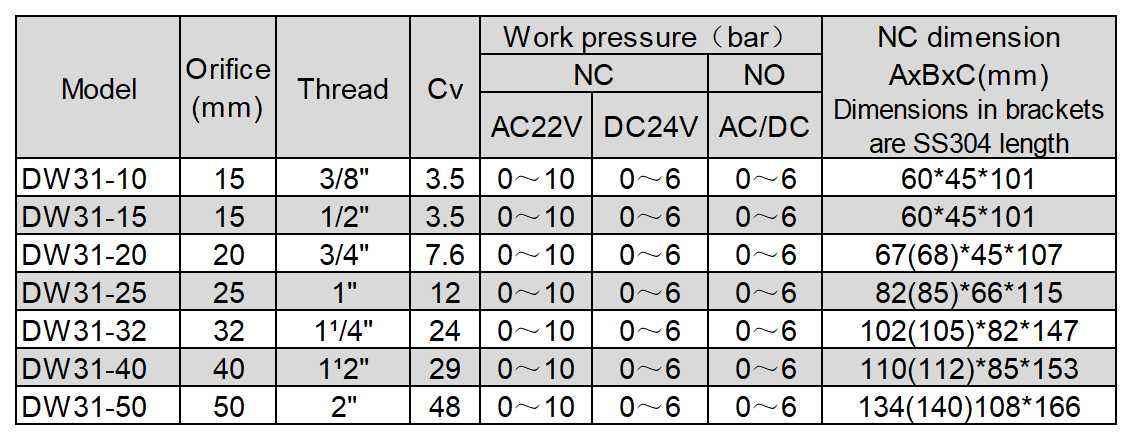

DW31 series solenoid valve specification table and(NC)drawing
