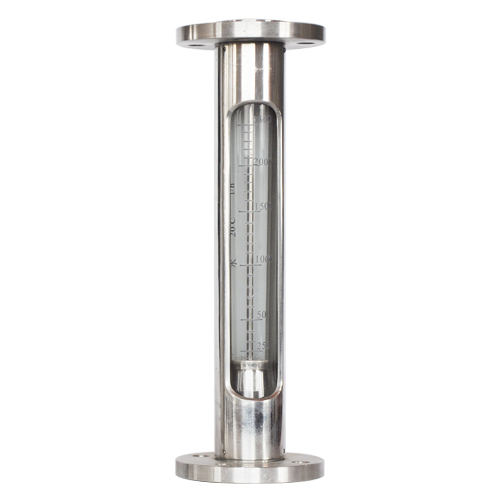

This Series of flownmeter is made of SS304.There are female Screw thread. Flange Connection
and Tri-clamp connection for choice. It is featured in nice looking and low weight.
Specification
DN (mm) | Model | Range（L/h） | Accuracy (±%) | Working Pressure(Bar) | Temperature | |
Water20℃ | Air 1013125Pa 20℃ (m3/h) | |||||
15 | VA30S-15 FA30S-15 | 4-40 6.3-63 10-100 12-120 16-160 20-200 25-250 30-300 36-360 40-400 46-460 63-630 65-650 75-750 | 0.12-1.2 0.2-2 0.3-3 0.4-4 0.5-5 0.6-6 0.8-8 0.9-9 1.2-12 2-20 | 1.5 | ≤1.0MPa | -20℃~200℃ |
25 | VA30S-25 FA30S-25 | 40-400 63-630 50-500 80-800 100-1000 120-1200 160-1600 200-2000 250-2500 300-3000 | 1.6-16 2-20 2.2-25 3-30 4-40 5-50 6-60 | |||
40 | VA30S-40 FA30S-40 | 160-1600 20-2000 250-2500 300-3000 400-4000 500-5000 | 5-50 6-60 8-80 9-90 12-120 | ≤0.9MPa | ||
50 | VA30S-50 FA30S-50 | 250-2500 300-3000 400-4000 500-5000 630-6300 800-8000 1000-10000 1500-15000 4000-16000 | 10-100 12-120 16-160 20-200 30-300 | ≤0.7MPa | ||

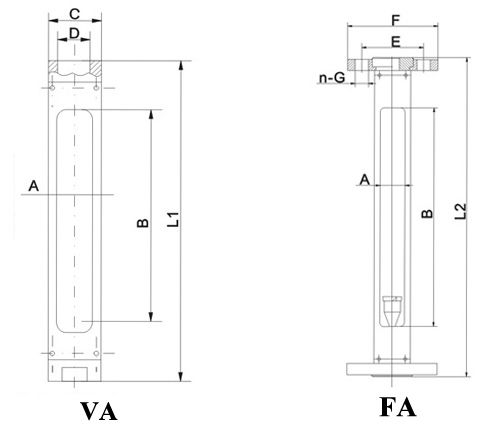

Installation and Drawing Size
Diameter (mm) | Display windown size a×b | VA30S Threaded Connection | ||
L1 | C | D | ||
15 | 26×236 | 344 | 38 | 1/2"BSP |
25 | 34×226 | 348 | 55 | 1"BSP |
40 | 44×226 | 370 | 70 | 11/2"BSP |
50 | 60×216 | 380 | 90 | 2"BSP |
Diameter (mm) | Display windown size a×b | FA30S Flange Connection | |||
| L2 | E | F | n-G | ||
| 15 | 26×236 | 348 | 65 | 95 | 4-14 |
| 25 | 34×226 | 348 | 85 | 115 | 4-14 |
| 40 | 44×226 | 370 | 110 | 145 | 4-18 |
| 50 | 60×216 | 370 | 125 | 160 | 4-18 |
