Technical Parameters of LZB-S Series Glass Rotameter
| Model | LZB-15S | LZB-25S | LZB-40S | LZB-50S | LZB-80S | LZB-100S | LZB-100 | |
Dismeter (mm) | 15 | 25 | 40 | 50 | 80 | 100 | 100 | |
| Range |
Liquid (l/h) | 6-60 | 40-400 | 160-1600 | 160-1600 | 1-10m3/h | 5-25 | 20-90 |
| 8-80 | 60-600 | 180-1800 | 400-4000 | 1.6-16m3/h | 6-35 | 20-100 | ||
| 16-160 | 100-1000 | 25-2500 | 600-6000 | 2-20m3/h | 8-40 | 30-100 | ||
| 25-250 | 160-1600 | 300-3000 | 800-8000 | 3-25m3/h | 12-60 | 50-120 | ||
| 40-400 | 400-4000 | 1-10m3/h | 8-40m3/h | 16-80 | ||||
| 1-5m3/h | 4-16m3/h | |||||||
| 1.5-6m3/h | ||||||||
Gas m3/h | 0.25-2.5 | 0.8-8 | 4-40 | 6-60 | 50-250 | 60-200 | 300-1500 | |
| 0.4-4 | 1-10 | 5-50 | 10-100 | 80-400 | 80-400 | 300-1600 | ||
| 0.6-6 | 1.6-16 | 6-60 | 16-160 | 750-7500l/min | 100-500 | 400-2000 | ||
| 0.8-8 | 2.5-25 | 7-70 | 20-200 | 60-600 | 120-600 | 500-2500 | ||
| 1-10 | 3-30 | 8-80 | 30-300 | 200-1000 | ||||
| 4-40 | 10-100 | 50-250 | ||||||
| 80-400 | ||||||||
| Accuracy(±%） | 2.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Pressure(MPa) | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.6 | ≤0.4 | ≤0.4 | ≤0.4 | |

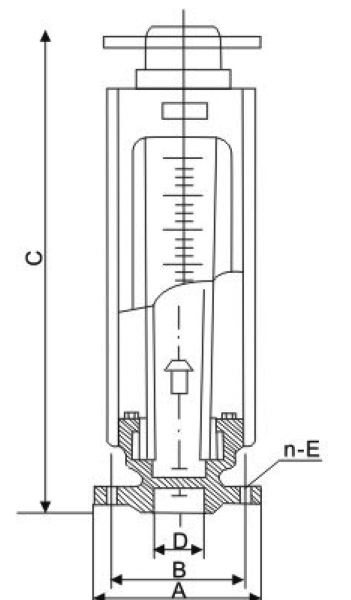

| Model | Dismensions(mm) | ||||
| A | B | C | D | n-E | |
| LZB-15S | 95 | 65 | 470±2.5 | 15 | 4-14 |
| LZB-25S | 115 | 85 | 470±2.5 | 25 | 4-14 |
| LZB-40S | 115 | 110 | 570±3 | 40 | 4-18 |
| LZB-50S | 160 | 125 | 570±3 | 50 | 4-18 |
| LZB-80S | 185 | 150 | 660±3.5 | 80 | 4-18 |
| LZB-100S | 205 | 170 | 660±3.5 | 100 | 4-18 |
