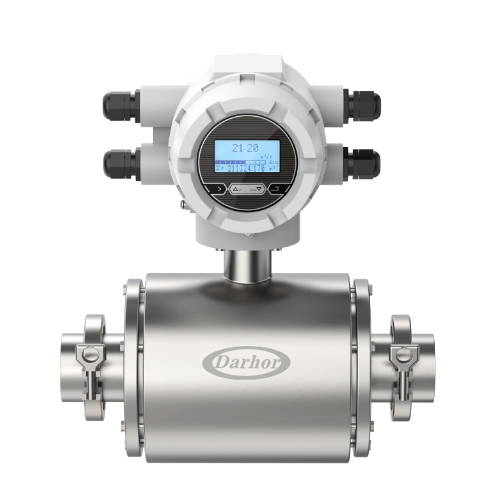

DH1000-S Sanitary Electromagnetic Flow Meter Clamp connection
DH1000-S Sanitary Electromagnetic Flow Meter Clamp connection
DH1000-S Sanitary Electromagnetic Flow Meter Clamp connection / DH1000-S
Accuracy: 0.5%, 0.2% Medium: Conductive liquid , slurry Signal output: 4-20mA, pulse Communication protocol : RS485, Hart
SHARE :
Show Details

                               DH-1000 Sanitary type electromagnetic flowmeter


   Reliable,                High Accuracy Flowmeter for Food, Beverage and Pharmaceutical Applications.

  Feature:

1.Smart design, enabling display of medium flow direction and empty tube

2.signal;

3.Two styles featured: compact and separate type;



4.Coming available in multiple models, such as tube-shaped and insertion model
               Powered by AC or DC in smart way, in two-wire mode, or using lithium cell


5.Wide flow range (30:1) and low initial flow rate for measurement (0.2m/s);

6.Adoption of EEPROM, ensuring impregnably secure storage of measurement & calculation data;

7.Displaying second, minute, hour, day, month and year;



8.Equipped with the communication interface RS-485 compatible with the protocol
              MODBUS and the HART compatible communication interface;


9.Simplified and tested structure; without movable parts and no intercepting or choking parts,
              thereby guaranteeing absence  of pressure loss or fluid blockage;


10.Nonexistence of mechanical inertia leading to rapid response and excellent stability; capable
               of being applied in automatic  detection, adjustment and program control system;

11.Accuracy in measurement not subject to the kind, temperature, viscosity, density, pressure and
                other physical properties  of the medium;



12.l Diverse mixes of polytetrafluoroethylene or rubber linings and electrode materials
              (e.g. Hc, Hb, 316L and Ti etc.)
adapting the product to various media;



13.l Suitable for measuring a variety of corrosive fluids, including strong acid, strong alkali, and
               saline solution etc.;


Data sheet
<Technical Performance Parameters  Caliver   DN3~DN3000mm  Nominal Pressure  0.6~4.0MPa(special pressure can be made to)  Accuracy  &plusmn;0.5%,&plusmn;0.3%or&plusmn;0.2% are selectable  Liner material  Teflon,PFA,F46,Neoprene,Polyurethane  Electrode Type  General type ,scraper type and replaceable type  Electrode material  Stainless steel SUS316,Hastelloy C,Titanium,Tantalum Platinum-iridium,Stainless steel covered with tungsten carbide  Medium Temperature Integral type -20&deg;C~+60&deg;C Remote type Neoprene & Polyurethane Liner -10&deg;C~+80&deg;C PTFE Liner /PFA Liner /F46 Liner                -10&deg;C~+160&deg;C  Ambient Temperature  -25&deg;C ~+ 60&deg;C  Ambient Humidity  5~100%RH(relative humidity)  Medium Electrical conductivity  &ge;20&mu; s/cm  Measuring Range  1500:1,flow rate<15m/s  Structure type   Integral type,remote type,submersible type,ex-proof type  Protection Class  IP65,IP68(optional)  Ex-proof Mark  ExmdⅡT4  Product Standard  JB/T 9248-1999 Electormagnetic Flowmete
