Specifications

Working medium:liquid,air,lightoil(viscositys20cst)

Ambient temperature:-20℃~+65℃

Medium temperature:-10~+80℃

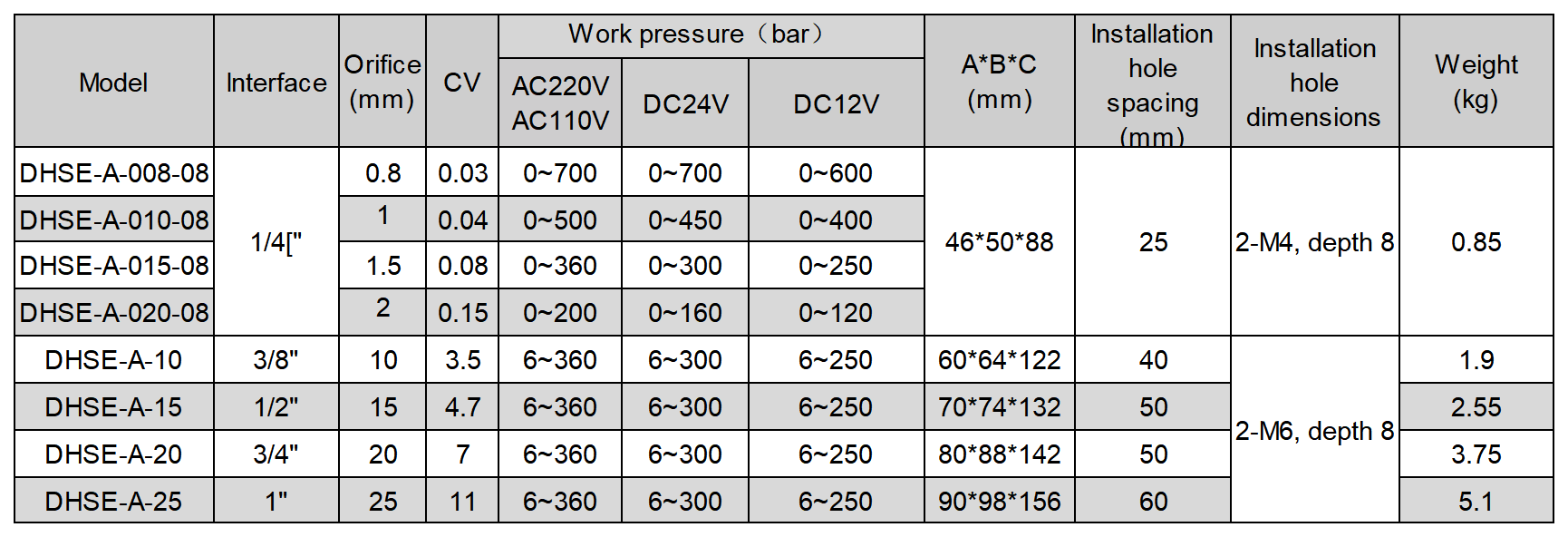

Working pressure:0~700bar(details see specification)

Working type:direct acting、pilot operated(NC)

 Interface:G thread,NPTthread

Valvebody material:SS304

Sealing material:PEEK

Working voltage:ES low power coilAC220V(start 105VA,maintain 5VA),AC110V(start 85VA,maintain 8VA)

DC24V(start 50W,maintain 8W)IP65,Other voltage can be customized.
