Working medium: water,hot water

Ambient temperature: -10℃~+50℃

Medium temperature: 0~100℃

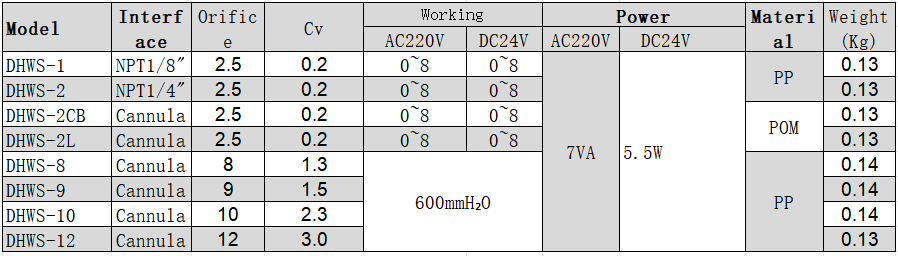

Working pressure: 0~8bar(see table below)

Working type: DHWS-1,DHWS-2 direct acting(NC)

                       DHWS-8,DHWS-9,DHWS-10,DHWS-12 diaphragm type(NC)

Sealing material:DHWS-1,DHWS-2,EPDM,VMQ

                          DHWS-8,DHWS-9,DHWS-10,DHWS-12,VMQ

Valvebody material:PP,POM

Interface:NPT thread,cannula

Working voltage:AC240V AC220/110V,50/60Hz, 7VA,DC24/12V 5.5W

                            IP54 B degree voltage could be customized
