Fountain with solenoid valve DHDF

Working medium:water

Ambient temperature:-20℃~+65℃

Medium temperature:-10~60℃

Working pressure:0~8bar(details see specification table)

Working type:DN15~50mm:semi-direct acting(NC,NO),pilot operated(DN65~200mm NC)

Valvebody material:Brass(HPb59-1A),SS304,PA66,cast iron

Sealing material:NBR

Interface:G thread,NPT thread,flange

Working voltage:DN15~25:AC220V/110V 20VA,DC24V 20W  DN32~50:AC220V/110V  32VA,DC24V  36W

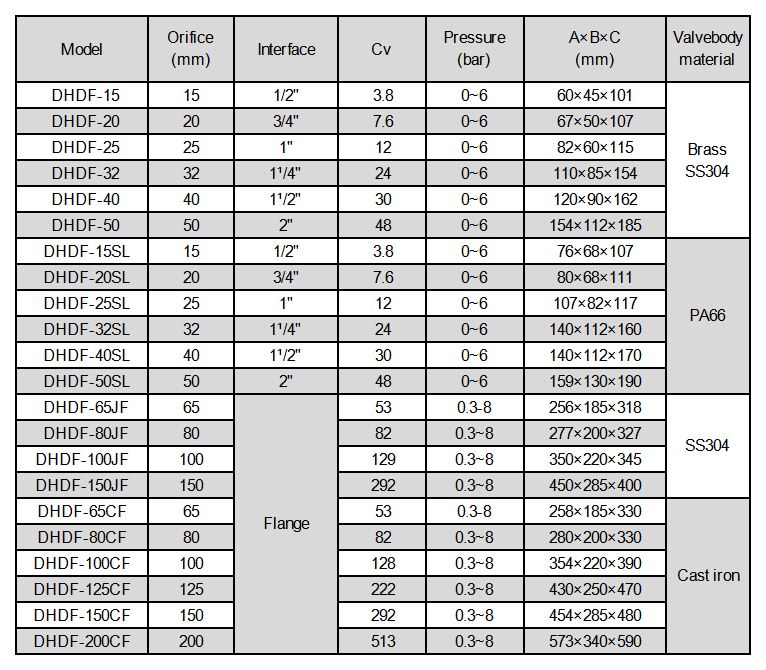

DHDF Normally Closed, with Coil F14B
