Specification:

Working medium:water,liquid,gas

Fluid temperature:-10~80℃

Ambient temperature:-10~50℃

Working pressure:0.3~8 bar(See the table below)

Working type:pilot operated(NC/NO)

Body material:PA66

Sealing material:NBR

Working Voltage:DN15~50 NCAC220V/110V50/60Hz 22VA,DC24V/12V 13W D04-310coil IP65

                            DN15~50 NO、DN80NC/NO:AC220V 18VA,AC110V22VA 50/60Hz,DC24V 14W,D05-450coil IP65

Interface thread:G thread,NPT thread

Optional:ES low temp coil(AC220V Start 38VA,hold3VA,DC24V Start16W,hold3W)IP65

               Ex encapsulated explosion-proof coil(AC220V Start56VA,hold5VA,DC24V Start40W,hold4W)IP65

               FS waterproof coil IP68

power:NC:AC220V3VA,DC24V3W,NO:AC220V6VA,DC24V4W

Note:1.The whole series has independent inlet water fiter,which can effectively ensure that the medium entering thethe valve is clean.Clean and maintain is simple and convenient.

         2.The full range of normally closed type with manual switch device can rotate the manual switch counterclockwiseto open the valve when there is no electricity.The normally open manual switch is locked.

         3.DN32~50mm products also have flow adjustment devices,which can adjust the flow rate according to requirements.

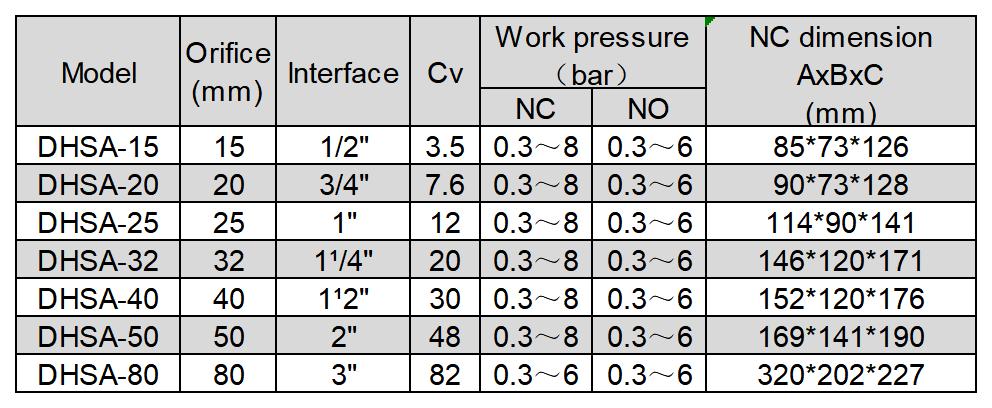

PARAMETERS:
