Household applicances solenoid valve

Household applicances solenoid valve

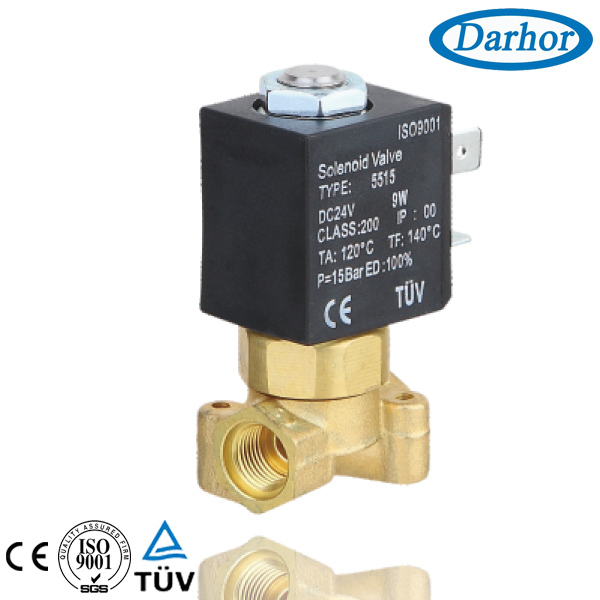

Product name:Household applicances solenoid valve
Item:5515-06
Details:
55XX Series
Direct Acting Solenoid Valve,
2WAY/3WAY SMALL HOME APPLIANCES VALVE

Characteristic: 1.Direct acting miniature construction at low power consumption
                       2.With TUV certificate for household appliance use like coffee machine, electrical iron, steam cleaner
                       3.Applied to low pressure system, open from 0 bar
Medium:          Air, Water, Steam, Oil, etc
Temperature:   NBR: -10℃ to 80℃
                        VITON: -10℃ to 150℃
Pressure:          55 series: 0 ~ 20 bar
Port Size:        1/8" and other
Port Thread:    BSPP, BSPT, NPT
Orifice (mm):   1.0, 1.2, 1.6, 2.0, 2.6, 2.8
Voltage:          DC - 12V, 24V
                       AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
                       Tolerance: +/- 10%
Coils:              SA11B, 8VA (AC), 8W (DC), IP65, 100%ED
Material:         Body - Brass
                       Seal -VITON,NBR,EPDM
                       Armature Tube - Stainless Steel 304
                       Plunger - Stainless Steel 430F
                       Stop - SS430F
                       Springs - SS 304
                       Shading Rings - Stainless Steel 304
5515-06
Media:          Water, air, oil, hot water, etc.
Media TEP: -10℃ - 150℃
Body:            Brass
Pre:               0 – 20 Bar
Port:              G1/8″ or NPT 1.8″
Orifice:          DN 2.0
Seal:             VITON
