Household applicances solenoid valve

Household applicances solenoid valve

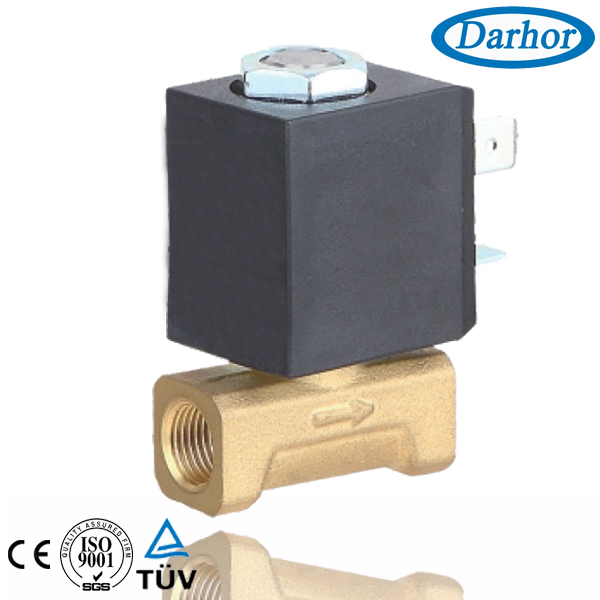

Product name:Household applicances solenoid valve
Item:5503-01
Details:
55XX Series
Direct Acting Solenoid Valve
2WAY/3WAY SMALL HOME APPLIANCES VALVE

Characteristic: 1.Direct acting miniature construction at low power consumption
                         2.With TUV certificate for household appliance use like coffee machine, electrical iron, steam cleaner
                         3.Applied to low pressure system, open from 0 bar
Medium:            Air, Water, Steam, Oil, etc
Temperature:    NBR: -10℃ to 80℃
VITON:              -10℃ to 150℃
Pressure:          55 series: 0 ~ 20 bar
Port Size:          1/8" and other
Port Thread:      BSPP, BSPT, NPT
Orifice (mm):     1.0, 1.2, 1.6, 2.0, 2.6, 2.8
Voltage:             DC - 12V, 24V
                          AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
                          Tolerance: +/- 10%
Coils:                 SA11B, 8VA (AC), 8W (DC), IP65, 100%ED
Material:            Body - Brass
                         Seal -VITON,NBR,EPDM
                         Armature Tube - Stainless Steel 304
                         Plunger - Stainless Steel 430F
                         Stop - SS430F
                         Springs - SS 304
                         Shading Rings - Stainless Steel 304
5503-01 Normally Closed
Media:        Water, air, oil, hot water, etc.
Media TEP: -10℃ - 150℃
Body:        Brass
Pre:           0 – 10.0 Bar
Port:          G1/8″ or NPT 1/8″
Orifice:     DN 2.0
Seal:        VITON
