Small plastic solenoid valve

Small plastic solenoid valve


Product name:Small plastic solenoid valve
Item:
Details:

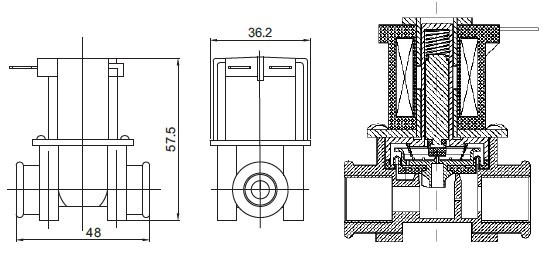

DHWS10 Series
Small diaphragm plastic solenoid valve
2WAY NC/NO

Characteristic:  1.Direct acting miniature construction at low power consumption
                       2.Food class body material available for RO system, Washer, miller, etc
Medium:            Air, Water, etc
Temperature:    NBR Seal: 14F to 176F, -10 to 80
                        Silicon Rubber Seal: -10℃ to 80℃
Pressure:          DHWS10: 0 ~ 7 bar
DHWA10-04:     0 ~0.5 bar
Port Size:          See data below
Port Thread:      BSPP, BSPT, NPT
Orifice (mm):     10mm
Voltage:             DC - 12V, 24V
                         AC - 24V, 120V, 240V/60HZ 110V, 220V/50HZ
                         Tolerance: +/- 10%
Coils :               SA41B,6VA(AC),6W(DC),IP65,100%ED
Material:            Body – Nylon (food class)
                         Seal -VITON, NBR, EPDM
                         Armature Tube - Stainless Steel 304
                         Plunger - Stainless Steel 430F
                         Stop -SS430F
                         Springs - SS 304
DHWS10-02
Media:       Water, air, oil, etc.
Media TEP: -10℃ to 80℃
Body:         PP
Pre:           0-8.0 Bar
Port:          NPT 1/4″
Orifice:       DN10
Seal:          NBR, Silicon rubber
