Small plastic solenoid valve

Small plastic solenoid valve

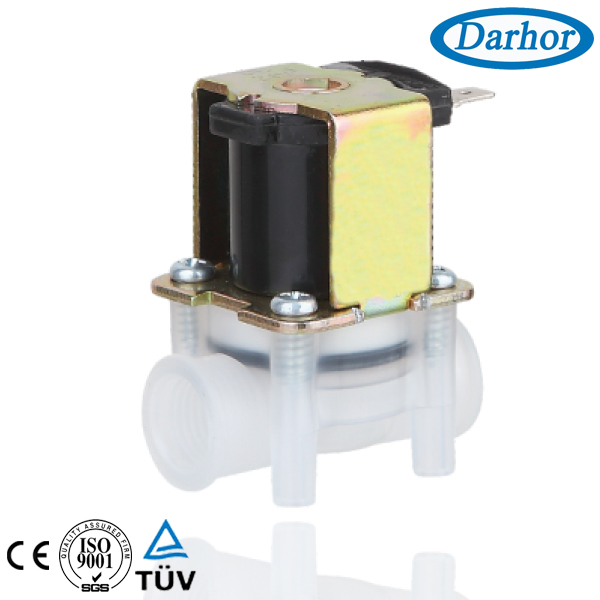

Product name:Small plastic solenoid valve
Item:
Details:
DHWS10 Series
Small diaphragm plastic solenoid valve
2WAY NC/NO

Characteristic: 1.Direct acting miniature construction at low power consumption
                      2.Food class body material available for RO system, Washer, miller, etc
Medium:            Air, Water, etc
Temperature:     NBR Seal: 14F to 176F, -10 to 80
                        Silicon Rubber Seal: -10℃ to 80℃
Pressure:          DHWS10: 0 ~ 7 bar
DHWA10-04:     0 ~ 0.5 bar
Port Size:          See data below
Port Thread:      BSPP, BSPT, NPT
Orifice (mm):    10mm
Voltage:            DC - 12V, 24V
                        AC - 24V, 120V, 240V/60HZ 110V, 220V/50HZ
                        Tolerance: +/- 10%
Coils :               SA41B,6VA(AC),6W(DC),IP65,100%ED
Material:            Body – Nylon (food class)
                        Seal -VITON, NBR, EPDM
                        Armature Tube - Stainless Steel 304
                        Plunger - Stainless Steel 430F
                        Stop -SS430F
                        Springs - SS 304
DHWS10-02-22 Normally OPEN
Media:       Water, air, oil, etc.
Media TEP: -10℃ to 80℃
Body:        PP
Pre:          0-8.0 Bar
Port:         NPT 1/4″
Orifice:     DN10
Seal:        NBR, Silicon rubber
