GA24 series flow meter

GA24 series flow meter


Product name:GA24 series flow meter
Item:
Details:

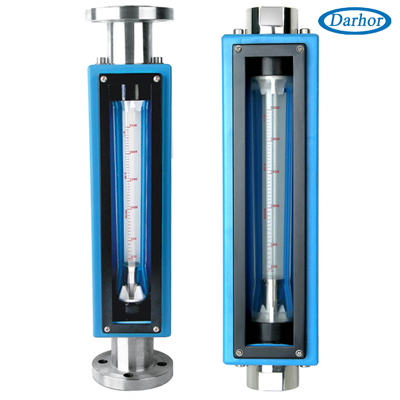

                                                                                          GA24 series flow meter


          This model flow meter is one type of glass rotameter, it has higher measure accuracy,
diversiform connections.
We can provide mm gradation scale, percentage scale, replaceable scale with flow units.




Specification

DN

(mm)

Model

Measure Range

Working

Pressure(Bar)

Temp.

Water (L/h)

 Air (m3/h)

15

GA24-15/15F

GA24V-15/15F

4-40

6-60

10-100

16-160

25-250

40-400

63-630

0.12-1.2

0.3-3

0.5-5

0.8-8

1.2-12

2-20

10

-20℃~120℃

25

GA24-25/25F

GA24V-25/25F

63-630

100-1000

160-1600

250-2500

2-20

3-30

5-50

8-80

10

40

GA24-40/40F

GA24V-40/40F

160-1600

250-2500

400-4000

5-50

8-80

12-120

9

50

GA24-50/50F

GA24V-50/50F

400-4000

630-6300

1000-10000

4000-16000

12-120

20-200

30-300

6

65

GA24-65

GA24V-65

2500-25000

8000-40000

80-800

240-1200

4

80

GA24-80

GA24V-80

8000-40000

10000-50000

240-1200

300-1500

4



GA24 Installation Size (Flange Connection)

DN(mm)

Window Size a×b

L

C

D

E

Weight

(Kg)

15

37×302

500

65

95

4-¢14

5.3

25

52×294

85

115

7.8

40

64×278

110

145

4-¢18

10.7

50

94×266

125

160

16.6

65

124×260

145

180

24

80

124×260

160

200

8-¢18


GA24V Installation Size (Thread Connection)

DN(mm)

Window

Size a×b

L

G

C

Weight(Kg)

15

37×302

420

1/2’’F NPT/BSP

80

3.8

25

52×294

1’’F

NPT/BSP

105

5.4

40

64×278

1 1/2’’F

NPT/BSP

125

8

50

94×266

2’’F

NPT/BSP

165

12.7

65(80)

124×260

2 1/2’’F

NPT/BSP

186
