PARAMETERS

Working medium:water,liquid,air,light oil(viscosity≤20cst)

Amblent temperature:-20℃~+65℃

Medium temperature:-10~80℃(NBR sealing)

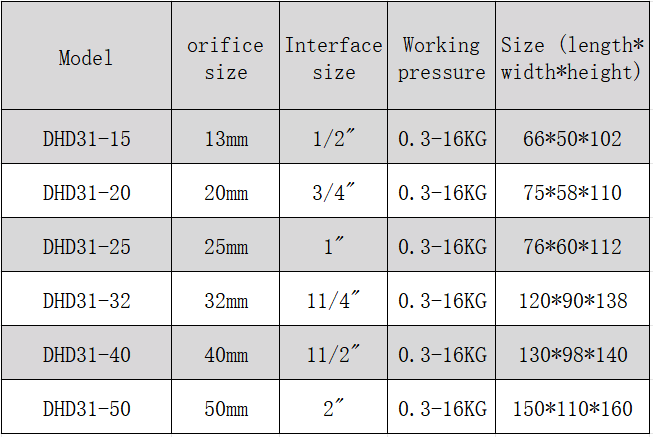

Working pressure:0.3~16bar(details see specification table)

Working type;pilot operated(NC)

Valve body material:Brass(HPb59-1A),SS316

Sealing material:NBR(-10~80℃)

Interface;G thread,NPT thread

Working voltage:AC220~240V,AC110V,50/60Hz,22VA

                            DC24V/DC12V 13W.IP65,H degree

Options:

Sealing material:EPDM(-20~130℃) or VITON(-15~120℃)

Rc thread Digital,LED Light connector

ES low temp coil(AC220V Start 38VA,hold3VA,DC24V Start16W,hold3W)IP65FSwaterproof coil lp68

Ex encapsulated explosion-proof col(AC220V Start56VA,hold5VA,DC24V Start40W,hold4W) IP65

ES coil solenoid valve fluid temperature-10℃~+80℃,Ex coil solenoid valve fluid temperature-10℃~+60℃
