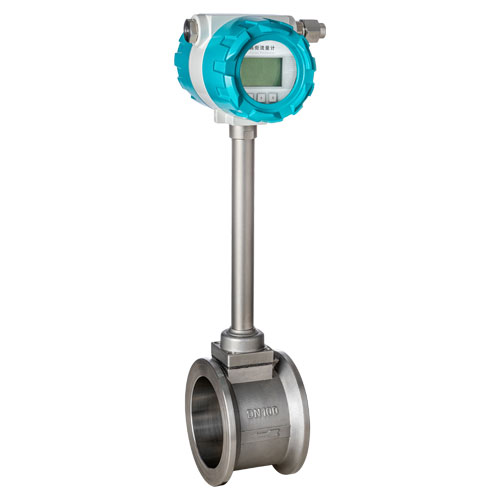

DH800 series Vortex flow meters are designed for measuring the volume/mass flow ofliquids,gases and steam based on Karman vortex principle.

Adopting advanced differential algorithm along with measurement of isolation, shielding andwave filtering, DH800 series vortex flow meters have the advantages of immunity on vibrationand noise. Meanwhile, the liabilities of DH800 series vortex flow meters are well guaranteedby unique sensor packaging technology.

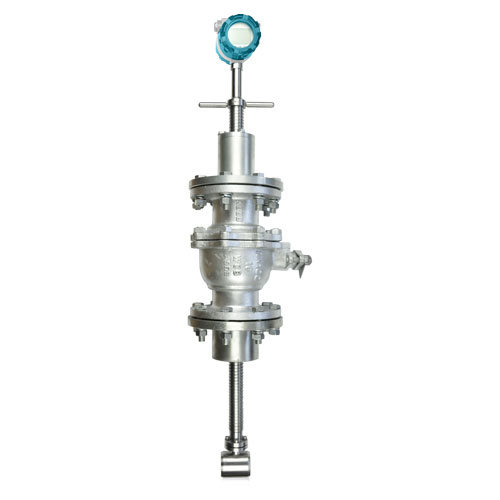

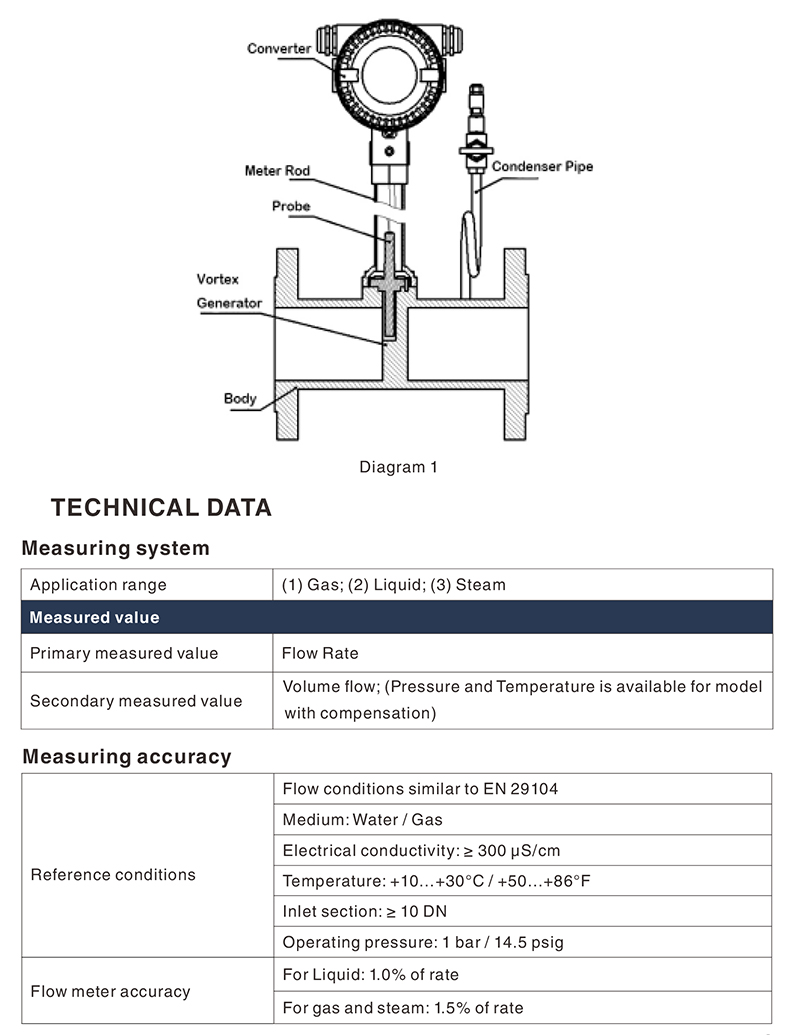

The basic structure of the vortex flow meter is shown in Diagram 1. it is mainly composed of body, probe, vortex generator, meter rod, condenser pipe and converter.
