acrylic gas flowmeter(old modle:LZM-4T)

acrylic gas flowmeter(old modle:LZM-4T)


Product name:acrylic gas flowmeter(old modle:LZM-4T)
Item:
Details:

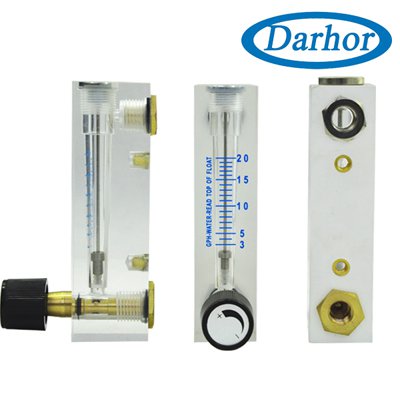

Acrylic gas flowmeter


          The flowmeter bodies are cut and precision machined from solid, clear acrylic plastic blocks. This
construction not only produces a handsome finished product, but permits complete visual inspection.
As a result, the flowmeters are especially popular for medical and laboratory equipment applications.

         Scales are easy to read - The front scale location and white background provides excellent visibility.
The direct reading scales are hot stamped into the plastic and will not wear off. Mid-range calibration is
established with a master flowmeter.



        Durable and attractive construction - The machined acrylic bodies of the  flowmeters are  practically unbreakable. The tapered bore is precision machined to a smooth surface that provides perfect visibility of
the indicating float. The DFG 4T.6T.8T models are available with either brass or stainless steel inlet and outlet connections and are tapped for 1/8" NPT thread. DFG 4T.6T.8T models have either 1/4" back or 3/8" end
connections. All standard models employ Buna-N o-rings for leak proof operation and are available with either
back or end connections for horizontal or vertical piping. Precision metering valves in brass or stainless steel are available.





Model

Measure Range



Screw thread



Accuracy

ml/min

(Liquid)

l/min

(Gas)



DFG-4T

6-60 8-80

40-400

0.1-1    0.2-2

0.25-2.5   1-12

 1-10



directФ6



+4%



DFG-6T





25-250

16-160

80-400

100-500

100-600

200-800

100-1000

0.1-0.8

0.1-1.5

0.3-3  0.4-4

0.5-8   1-5

1-12   2-10

2-20   3-15

3-30   4-20

5-25   6-30

10-60 20-70

0.05-0.25M3/H

       M18*1.5

G1/4"

1/4"BSP



0.04-0.4M3/H

tube



DFG-8T



2.5-25LPH

4-40LPH

6-60LPH



0.16-1.6M3/H

0.1-1M3/H

0.2-2M3/H

        M18*1.5

G1/4"

1/4"BSP

Easy installation - All flowmeters have metal mounting inserts on rear for panel mounting. They can also be supported directly by system piping.


Service: Compatible gases and liquids.
Wetted Materials: Body: acrylic plastic; O-ring: Buna-N (fluoroelastomer available); Metal Parts: brass standard, stainless steel optional; Float: stainless steel, acrylic, agate ball,PTFF.depending on range.

Temperature & Pressure Limits: Without Valve: 100 psig (6.9 bar) @ 150°F (65°C); 150 psig (10 bar) @ 100°F (38°C); With Valve: 100 psig (6.9 bar) @ 120°F (48°C).
Accuracy:4% of full scale.
Process Connection: 1/4" NPT back connections or 3/8" NPT end connections.
Mounting Orientation: Mount in vertical position.
