Electric Fluorine Butterfly Valve

Electric Fluorine Butterfly Valve


Product name:Electric Fluorine Butterfly Valve
Item:-DHDV-E
Details:
 Standard technical parameters

Valve body

Nominal diameter: DN50-600

Body material: WCB,304,316

Connection type: wafer, flange, lug wafer

Pressure class: PN1.0MPa, PN1.6MPa

Structure: Midline type

Design and manufacturing standards

Design and manufacture: GB12238

Connection standard: JB/T79.1-1994

Structure length: GB/T12221-2005

Pressure testing: GB/T13927-2008

Valve components:

Seat sealing: PTFE:-30~140

Disc material: WCB,304,316 lining PTFE

Applicable medium: Water, liquid, gas, oil, powder,steam, acid

and alkali corrosive medium

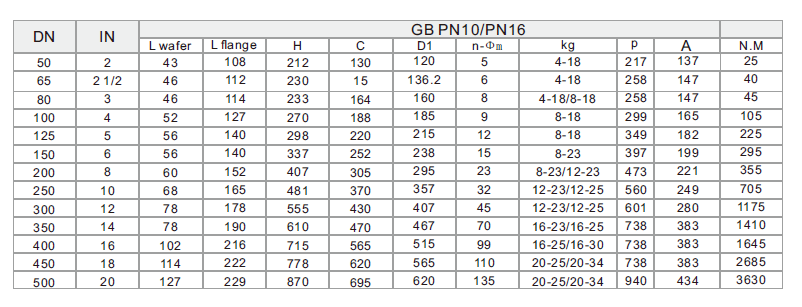

Note: The valve body, disc, seat material characteristics please

as shown in table
