Pneumatic PVC Plastic Butterfly Valve

Pneumatic PVC Plastic Butterfly Valve


Product name:Pneumatic PVC Plastic Butterfly Valve
Item:DHDV-P
Details:
 Standard technical parameters

Valve body

Body material: UPVC, CPVC, PPH, PP, PVDF

Connection type: Wafer

Pressure class: PN1.0MPa PN1.6MPa

Structure: Midline type

Design and Manufacturing standards

Design and manufacture

Connection standard: JB/T79-94, GB9113.1-26

Structure length: GB12221

Pressure testing: GB/T13927

Valve components

Seat sealing: EPDM:-30~80

Disc material: UPVC, CPVC, PPH, PVDF

Steam material: SS410

Applicable medium: Water, liquid, gas, oil, powder, steam, acid

and corrosive medium.

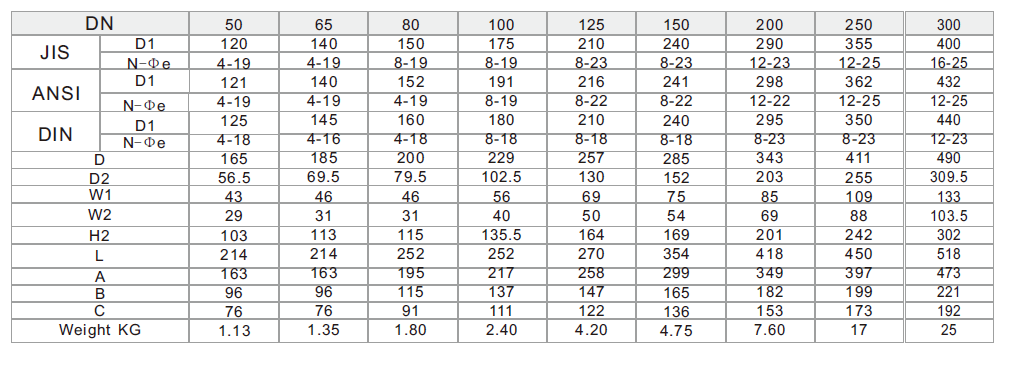

Note: The valve body, disc, seat material characteristics please

as shown in table
