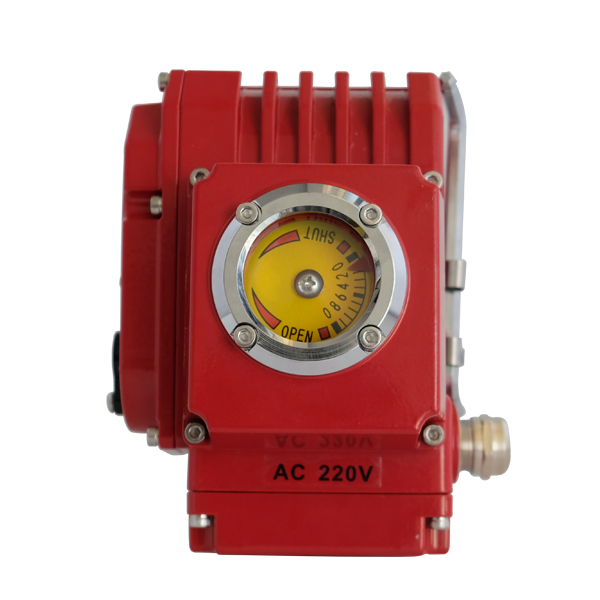

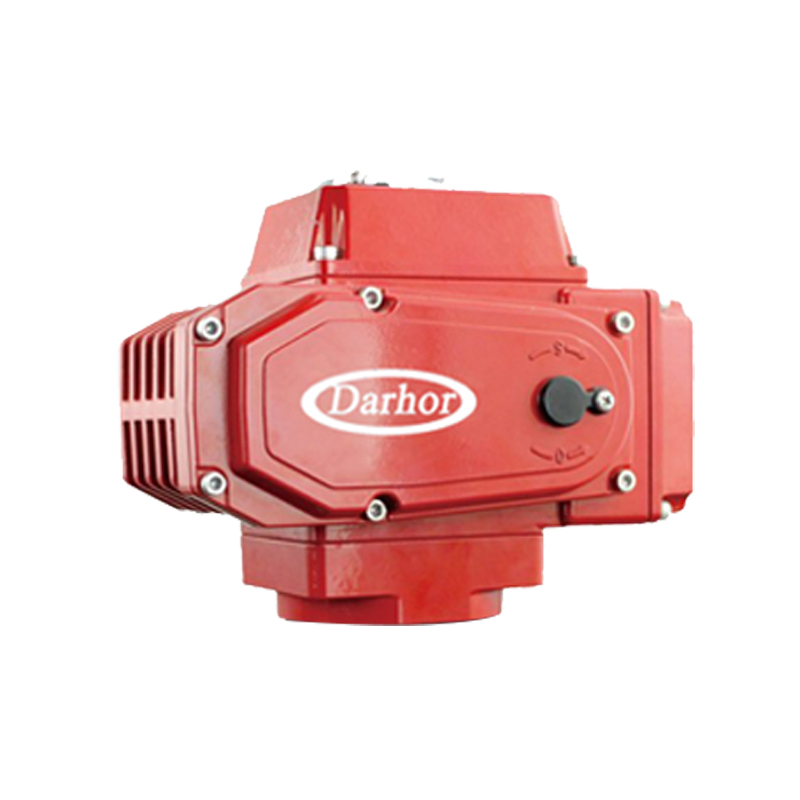

DHET Series electric actuator

DHET Series electric actuator


Product name:DHET Series electric actuator
Item:
Details:
 DHET Series electric actuator is used to control the 0°~270°rotary valve,

such as ball valve, butterfly valve,gate valve,plug valve,damper and louver

valve and so on,can be widely used in petroleum,chemical industry,water

treatment,paper making,power station,ship,heating,light industry and

other industry.It uses AC380V/220V/110V/24V and DC24V power supply

for driving power supply,the 4-20mA current signal or 0-10V DC voltage

signal as control signal,can control the valve switch and adjust,to realize

the automatic control,the maximum output torque of 3000N-NM.
