DFG-4T6T8T Series flow meter

DFG-4T6T8T Series flow meter


Product name:DFG-4T6T8T Series flow meter
Item:DFG-4T6T8T
Details:

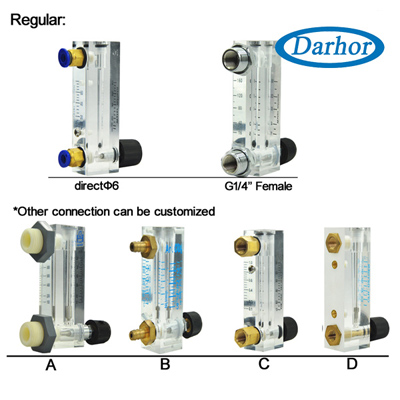

DFG-4T6T8T Series flow meter



This model flow meter is fitting for measure and adjust small flow rate,it have compact configuration.
A specially designed
fitting permit easy to read .It can be connected with hose or metal pipe.



Technical Parameters of DFG-4T.6T.8TFlowmeter



Model

Measure Range





Screw thread



Accuracy

ml/min

(Liquid)

l/min

(Gas)



DFG-4T

6-60 8-80

40-400

0.2-2

1-12



direct6



+4%



DFG-6T





25-250

16-160

80-400

100-500

100-600

200-800

100-1000

0.1-0.8

0.1-1.5

0.3-3  0.4-4

0.5-8   1-5

1-12   2-10

2-20   3-15

3-30   4-20

5-25   6-30

10-60 20-70

0.05-0.25M3/H



G1/4"

1/4"BSP



0.04-0.4M3/H

tube



DFG-8T



2.5-25LPH

4-40LPH

6-60LPH

0.16-1.6M3/H

0.1-1M3/H

0.2-2M3/H



G1/4"

1/4"BSP





flowmeters 3.jpg



The outline size of DFG-4T6T8T Flow Meter

Model

Size(mm)

A

B

C

D

E

F

DFG-4T

94

27

21

14

14

70

DFG-6T

102

30

25

20

M18x1.5

77

          DFG-6

120

29

29

28

9

90

DFG-8T

110

30

25

20

M18x1.5

80



The material and code of the parts of DFG-4T6T8T Flow Meter



With value



Value



Fitting



Float



O-ring

T- with

O- No

Brass

Ss

1 ABS

2.PP

3.PVC

4.Brass

5.Brass   chromeplate

6.SS



Ss

Acrylic



Agate ball



PTFE

1-Silicon  rubber

2-Fluorin rubber

3-Butyl

 More details:
