FA100 series Direct Reading chemical flow meter

FA100 series Direct Reading chemical flow meter


Product name:FA100 series Direct Reading chemical flow meter
Item:FA100
Details:
      FA100 series Direct Reading chemical flow meter



        The series of glass rotor flowmeter is an intergrated product by coneshaped glass tube,Float,
flanges. The installation is easy
and the flowmeter is adjustable, the flowmeter is used in ranges
such as semi-conductor chemicals ect.



Specification

        DN

             Flow     Range

     Pressure(Mpa)

       Water(L/h)

    Air(NL/min)



15

30-300

10-100









        ≤0.8

60-600

20-200

80-800

25-250



20

90-900

20-200

120-1200

30-300

180-1800

50-500



25

180-1800

50-500

300-3000

100-1000

480-4800

150-1500



32

480-4800

200-2000









        ≤0.6

600-6000

250-2500

720-7200

300-3000



40

1-10m³/h

18-180Nm³/h

1.2-12m³/h

20-200Nm³/h

1.5-15m³/h

25-250Nm³/h



50

1.2-12m³/h

20-200Nm³/h

1.5-15m³/h

25-250Nm³/h

1.8-18m³/h

30-300Nm³/h



65

1.8-18m³/h

25-250Nm³/h









       ≤0.4

3-30m³/h

35-350Nm³/h

4-40m³/h

40-400Nm³/h



80

4-40m³/h

40-400Nm³/h

5-50m³/h

50-500Nm³/h

6-60m³/h

60-600Nm³/h



100

6-60m³/h

60-600Nm³/h

7-70m³/h

70-700Nm³/h

10-100m³/h

90-900Nm³/h



FA-100 Installation (Flange connection):



15

20

25

32

40

50

65

80

100

L

260

340

340

340

340

340

390

390

410

D

150

200

200

200

200

200

250

250

250

H

95

105

115

135

150

160

180

185

205

d

65

75

85

100

110

125

145

150

170

f

14

14

14

14

14

14

14

18

18

 Japan SGK type 4.jpg








[Previous]      [Next]     [ Back ]




Related Products :

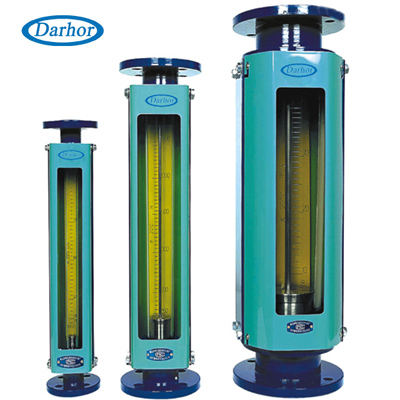

LZB glass rotameter for liquid, gas

LZB glass rotameter for liquid, gas

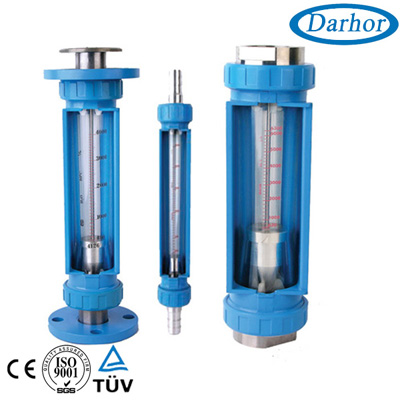

GA24 Krohne type glass flow meter

GA24 Krohne type glass flow meter
Z-400 acrylic flowmeter for water, air

Z-400 acrylic flowmeter for water, air
VASAFA20 glass tube rotameter for liquid, gas

VASAFA20 glass tube rotameter for liquid, gas

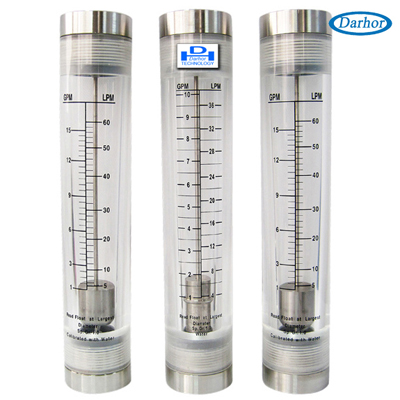

VA30 glass tube small flow flow meter

VA30 glass tube small flow flow meter

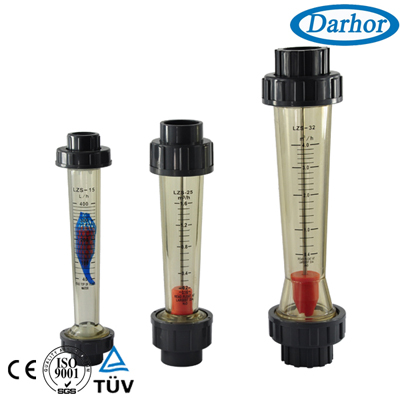

LZS plastic flow meter for liquid
