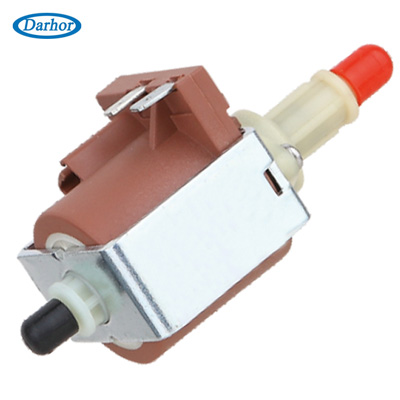

DHMP 25 watt solenoid pump

DHMP 25 watt solenoid pump


Product name:DHMP 25 watt solenoid pump
Item:
Details:

DHMP Series Solenoid Pump

Product Information

Pump Type: Solenoid (Piston) Pump

Insulation: Class H

Connection: Inlet Φ5.0, OutletΦ6.5

Approval: VDE, ETL, CQC



Performance Specifications

Coil Data

DHMP-E: 220~240VAC, 50Hz, 25W

DHMP-U: 120VAC, 60Hz, 25W

DHMP-J: 100VAC, 50/60Hz, 25W

Ideal fluid: Water at 25 degree

Ambient temperature: 45 degree

Flow rate at 0 bar: 50-200cc/min

Pressure: 0 bar < P < 4.8 Bar

Suitable to dry-use only during priming

Laboratory test condition:
2/1 min, Ta: 40
, Tf: 35

2/1 min: 2 min on, 1 min off

Ta: Ambient temperature

Tf: Temperature of fluid water

Applications

1. Steam iron

2. Steam cleaning machine

3. Steam generator

4. Stage smoke machine

5. Espresso coffee machine

6. Medical device

7. Floor care machine

Specifications

Item

Flow rate

(cc/min)

Max pressure

(Bar)

Noise

(DBA 20cm)

Power rate

(W)

T(℃)

Working mode

Passed certification





Coil with diode in it Noise is tested for a distance of 20 cm.

MP-01048

50

4.8

60

25

115



ED: 100%



VED&ETL

+CETL+CQC

MP-02048

100

4.8

60

25

115

MP-03040

150

4.0

60

25

115

MP-04035

200

3.5

60

25

115

MP-13025

650

2.5

60

25

115





2/1 min

MP-16020

800

2.0

60

25

115

MP-09030

450

3.0

60

25

115

MP-04060

200

6.0

60

25

115














[Previous]      [Next]     [ Back ]




Related Products :

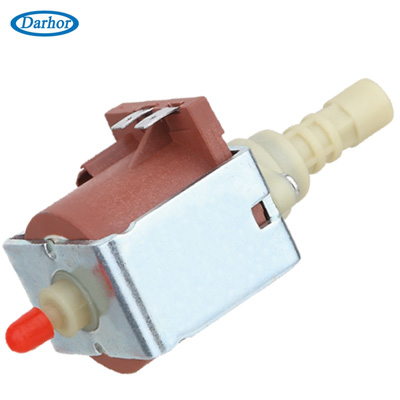

DHBP 48 watt solenoid pump

DHBP 48 watt solenoid pump

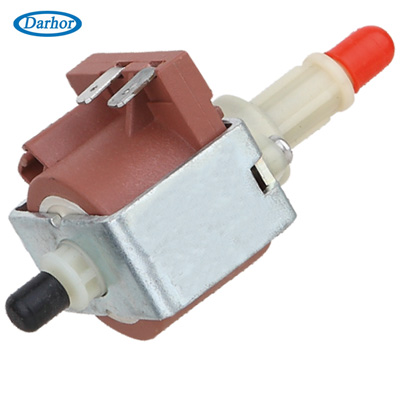

DHSP 16 watt solenoid pump
