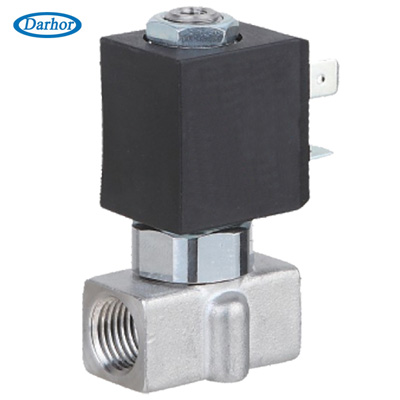

DHG21-S 3 way 2 position solenoid valve

DHG21-S 3 way 2 position solenoid valve


Product name:DHG21-S 3 way 2 position solenoid valve
Item:
Details:
Miniature valve DHG21

Characteristic:  1.Direct acting miniature construction  at low power consumption
                      2.Compact design to save the space
                      3.Applied to low pressure system, open from 0 bar

Medium:           Air, Water, Steam, Oil, etc

Temperature:   NBR Seal: 14F to 176F, -10 to 80
                      EPDM Seal:  14F to 250F, -10 to 120
                      VITON Seal: 14F to 300F, -10 to 150
                      PTFE Seal: -4F to 350F, -20 to 180

Pressure:         DHG21: 0 ~ 15 bar

Port Size:          1/8", 1/4"

Port Thread:       BSPP, BSPT, NPT

Orifice (mm):     1.6, 2.0, 2.5, 3.0, 3.5, 4.0, 5.0

Voltage:            DC - 12V, 24V
                        AC - 24V, 120V, 240V@60HZ 110V, 220V@50HZ
Tolerance:          +/- 10%

Coils:               S91B, 17VA (AC), 10W (DC), IP65, 100%ED
                       NASS COIL 0543 on request

Material:           Body - Brass or stainless steel
                       Seal -VITON, NBR, EPDM
                       Armature Tube - Stainless Steel 304
                       Plunger - Stainless Steel 430F
                       Stop -SS430F
                       Springs - SS 304
                       Shading Rings - Stainless Steel 304

Remark: DHG21: Normally closed

DHG21 Series, 3 way, with Coil SA11B NO

Port Size

Body   (mm)

Top (mm)

Cv

Min Pressure(bar)

Max Pressure(bar)

Valve Body

Coil

AC(22VA)

DC(14W)

1/8"

1.6

1.5

0.25

0

8

8

DHG2116XX X X X

SA11B

1/8"

2.5

1.5

0.25

0

6

6

DHG2125X X X X

SA11B

1/8"

3

1.5

0.35

0

4

4

DHG2130X X X X

SA11B

1/4"

1.6

1.5

0.25

0

8

8

DHG2116X X X X

SA11B

1/4"

2.5

1.5

0.25

0

6

6

DHG2125X X X X

SA11B

1/4"

3

1.5

0.35

0

4

4

DHG2130X X X X

SA11B










[Previous]      [Next]     [ Back ]




Related Products :

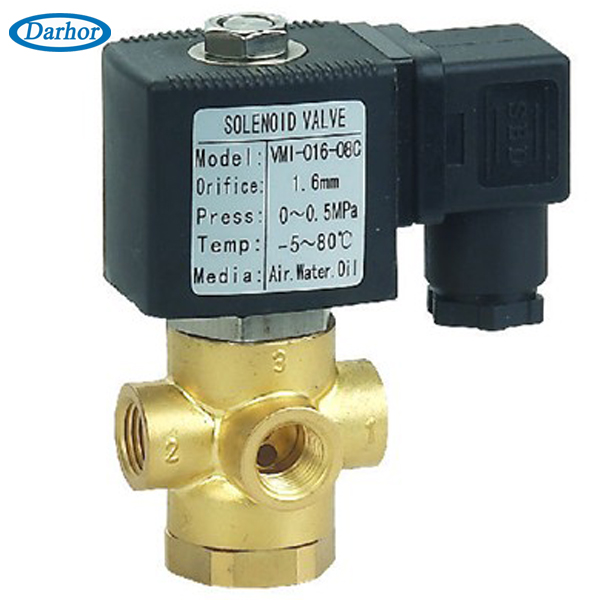

231Y 3 way solenoid valve

231Y 3 way solenoid valve

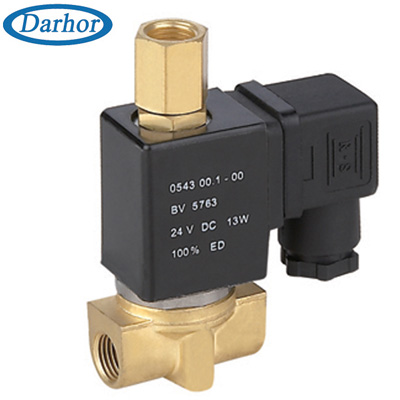

DHG31 brass 3 way 2 position solenoid valve

DHG31 brass 3 way 2 position solenoid valve

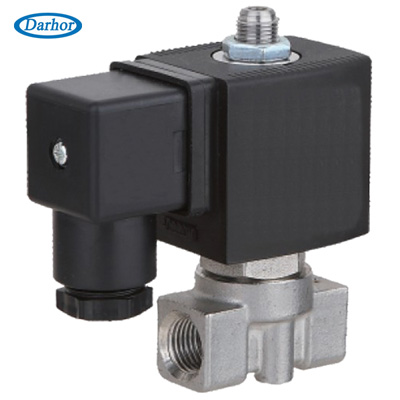

DHG31-S 3 way 2 position solenoid valve

DHG31-S 3 way 2 position solenoid valve

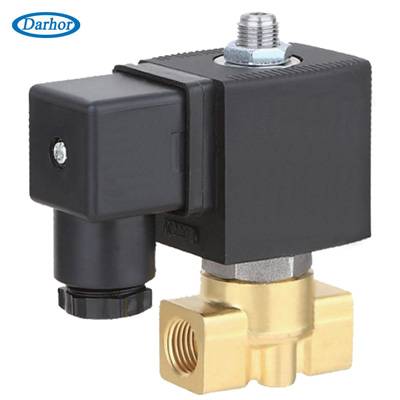

DHVM 3 way solenoid valve, ASCO8320
