DHH31 0.1~250 bar high pressure solenoid valve

DHH31 0.1~250 bar high pressure solenoid valve

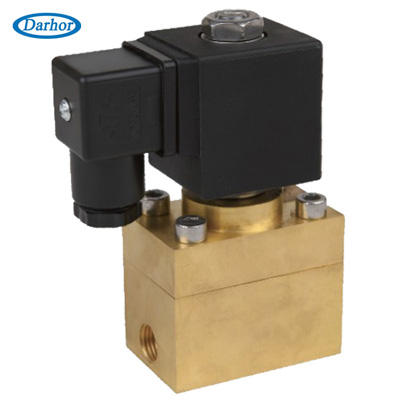

Product name:DHH31 0.1~250 bar high pressure solenoid valve
Item:
Details:
DHH31 Series High Pressure Diaphragm Pilot Operated
Normally Closed

Characteristic:  1. High pressure solenoid valve with Pilot operated diaphragm construction for compress air machine, injecting plastic machine
                       2. With PARKER seals to improve the quality
Medium:          Hot Water, Compresses Air, Water, Oil, <20CST, GAS>
Temperature:   PET: -40℃ to 200℃
Pressure:         DHH31: 0 ~ 250 bar
Port Size:         1/4", 3/8"
Port Thread:     BSPP, BSPT, NPT
Orifice (mm):    1.2, 2.0, 2.5, 3.0
Voltage:            DC - 12V, 24V
                       AC - 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
Tolerance:         +/- 10%
Coils:               S21B, 24VA (AC), 18W (DC), IP65, 100%ED
                       NASS COIL 0543 on request
Material:           Body - Brass /SUS304
                       Seal PET
                       Armature Tube - Stainless Steel 304
                       Plunger - Stainless Steel 430F
                       Stop -SS430F
                       Springs - SS 304
                       Shading Rings - Stainless Steel 304
DHH31 Normally Closed, with Coil S21B
