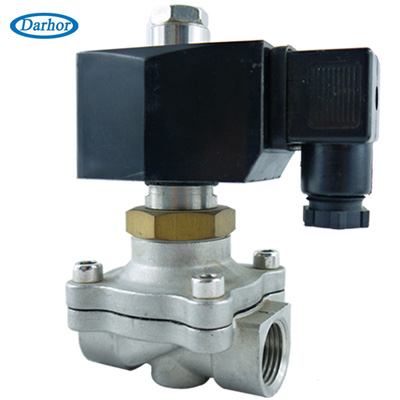

2W12-S stainless steel N/O solenoid valve

2W12-S stainless steel N/O solenoid valve


Product name:2W12-S stainless steel N/O solenoid valve
Item:USD25~USD140
Details:
2W12 Series Diaphragm Direct Lifting, 3/8—2” 2WAY N.O

Characteristic: 1. Direct lifting diaphragm construction;
                        2. Open from zero bar for low pressure system use;
                        3. High frequency of flying lead coil.

Medium:         Air, City Gas, Water, Oil, Petroleum, etc.

Temperature:   NBR Seal: -10℃ to 80℃
                        EPDM Seal: -30℃ to 120℃
                        VITON Seal: -30℃ to 150℃

Pressure:         2W12: 0 ~ 10bar N.O

Port Size:        3/8", 1/ 2", 3/4", 1", 1 1/4", 1 1/ 2", 2"

Port Thread:   G, BSP, NPT, Flange

Orifice (mm):  12, 15, 20, 25, 32, 40, 50

Voltage:            DC - 12V, 24V
                        AC - 24V, 120V, 240V/60Hz; 110V, 220V/50Hz
Tolerance:        +/- 10%

Coils:              Y32B, 40VA (AC), 18W (DC), IP65, 100%ED

Y42B, 50VA (AC), 20W (DC), IP65, 100%ED

S51B: 30VA (AC), 24W (DC), IP65, 100%ED

S91B: 22VA (AC), 17W (DC), IP65, 100%ED

SD01B: 28VA (AC), 36W (DC), IP65, 100%ED

Material:            Body- Brass or Stainless Steel

Seal -NBR, EPDM or VITON

Armature Tube- Stainless Steel 304

Plunger- Stainless Steel 430F

Stop- Stainless Steel 430F

Springs- SS 304

Shading Rings- Copper

2W12 Normally Open, with Coil S51B

Valve Body

Orifice

Cv

Min Pressure(bar)

Max Pressure(bar)

Coil

2W1212 X X X

12

4.5

0

10

10

S51B

2W1215 X X X

15

4.5

0

10

10

S51B

2W1220 X X X

20

9.3

0

10

10

S51B

2W1225 X X X

25

12

0

10

10

S51B

2W1232 X X X

32

24

0

10

10

S51B

2W1240 X X X

40

29

0

10

10

S51B

2W1250 X X X

50

48

0

10

10

S51B














[Previous]      [Next]     [ Back ]




Related Products :

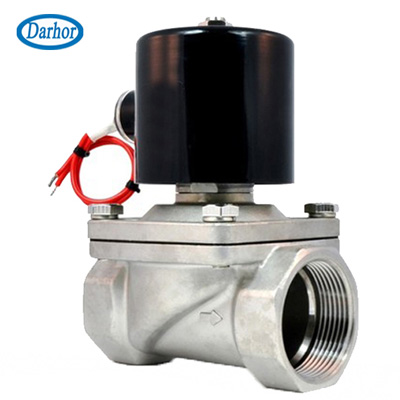

2W11 general use solenoid valve

2W11 general use solenoid valve

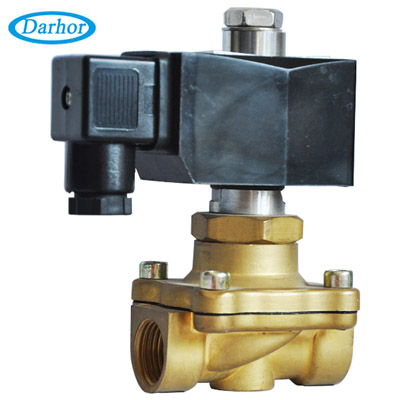

DHSM31 small solenoid valve

DHSM31 small solenoid valve

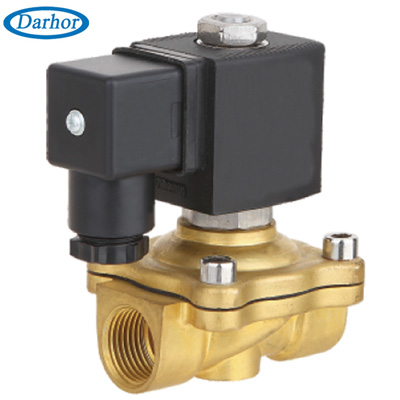

DHSM12 Normally open miniature solenoid valve
DHSM12
DHSM12 Normally open miniature solenoid valve

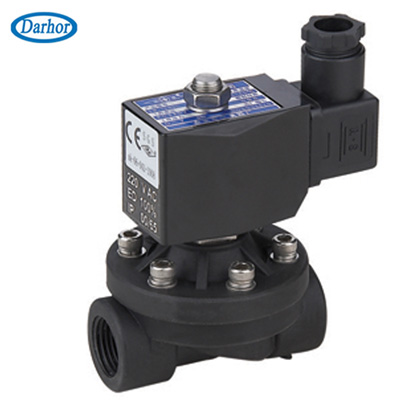

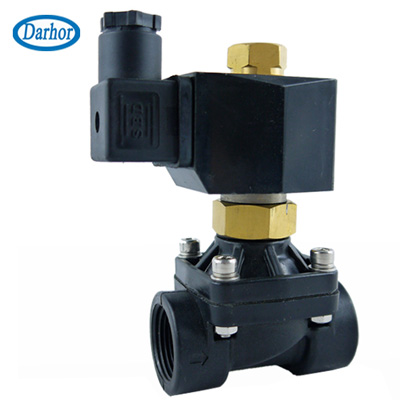

DHVA plastic solenloid valve

DHVA plastic solenloid valve

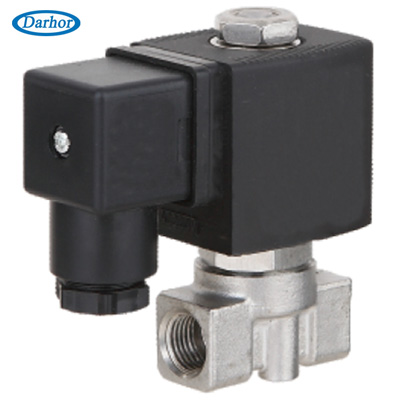

DHSM31-S miniature solenoid valve

DHSM31-S miniature solenoid valve
General use for water, air, gas, oil

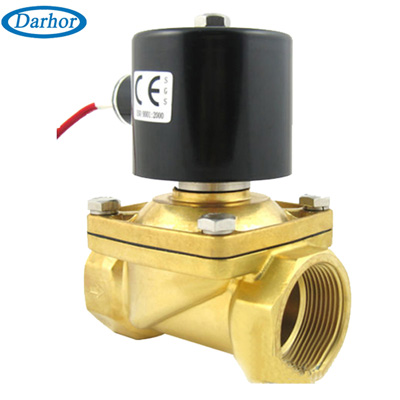

2W31
