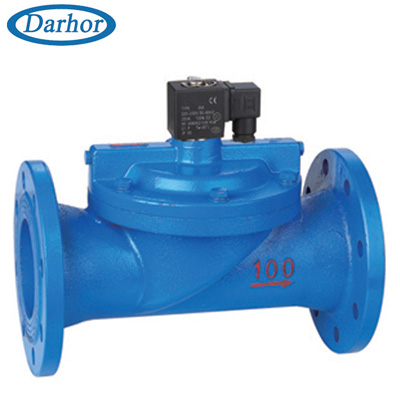

DHFD-CF flange cast iron solenoid valve

DHFD-CF flange cast iron solenoid valve


Product name:DHFD-CF flange cast iron solenoid valve
Item:USD42~USD686
Details:
2/2 Way DHFD-CF Series Solenoid Valve

Technical Specifications

-- Medim Water, Air, Oil (below 20cst)

--Temperature -5~80°C

--Mode of action Pilot operated

--Body material Cast iron

-- Sealing material NBR

--Protection class IP65

--Function type Normally Closed (N/C), Normally Open(N/O)

-- MAX. Pressure Normally Closed 12bar; Normally Open 8bar

Model

Flange D

Flange D1

Flange D2

DHFD-40CF

150

110

4-Φ18

DHFD-50CF

165

125

4-Φ18

DHFD-65CF

185

145

4-Φ18

DHFD-80CF

200

160

8-Φ18

DHFD-100CF

220

180

8-Φ18

DHFD-125CF

250

210

8-Φ18

DHFD-150CF

285

240

8-Φ22

DHFD-200CF

340

295

12-Φ22



How to order

Valve type

Connection pipe size

Function type

Voltage



OPTIONS

EPDM (E): suitable to water, hot water, gas, Freon, the MAX. 110°C; In case you choose EPDM, please state “E” in your order.

Viton (V):  suitable to hot water, acid, alkali, chemical salt, oil and hydrocarbon; the MAX.130°C. In case you choose Viton, please state “V” .

DHFD-CF

---40



DC24V





 C-Cast

40        100

Blank

 N/C

AC220V





F-Flange

50      125

K-N/O

AC110V







65      150



DC24V







80      200



DC12V





PARAMETERS (N/C)

Model

DHFD-40CF

DHFD-50CF

DHFD-65CF

DHFD-80CF

DHFD-100CF

DHFD-125CF

DHFD-150CF

DHFD-200CF

Flange connection

1½"

2"

2½"

3"

4"

5"

6"

8"

Orifice Size

mm

40

50

65

80

100

125

150

200

Motion Pattern

Pilot Operated

Cv Value

21

30

52.5

81.7

128.4

221.7

291.7

513.5

L

mm

182

215

256

277

350

425

450

560

H

mm

196

200

280

287

330

437

460

547

H1

mm

125

120

185

190

230

310

318

380

Medium temperature

-5 ~ 80°C

Pressure

bar

N/C:0.3~12(0.3~16)         N/O: 0.3~8

Power

AC:220V~AC:230V/50-60HZ  25VA;

AC110~AC:120V/50-60HZ  26VA;

DC24 12 W;

DC12  14W ;

Range:±10%,
