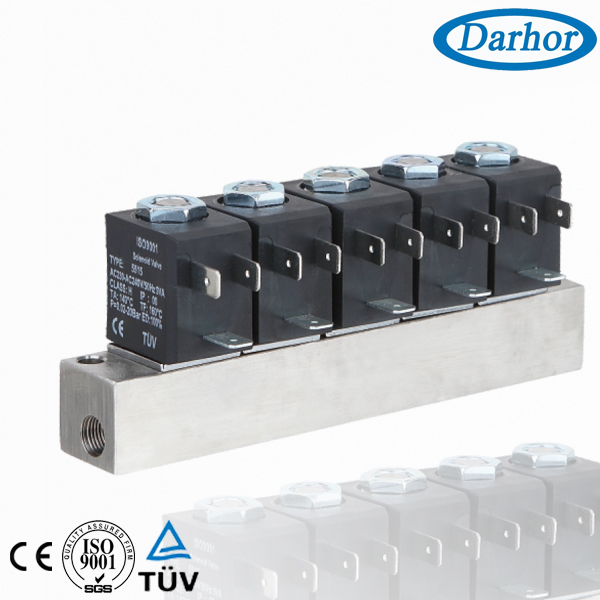

Manifold solenoid valve

Manifold solenoid valve


Product name:Manifold solenoid valve
Item:
Details:
DHZ21 Series
Normally closed
Manifold Solenoid Valve

Characteristic: 1. Direct acting with compact design
                        2. Threaded port and sub-base connection
                        3. High cycling rate and low temperature rising
Medium:           Neutral gas and fluids
Temperature:   NBR Seal: -10℃ to 80℃
                        EPDM Seal: -10℃ to 120℃
                        VITON Seal: -10℃ to 150℃
Pressure:         DHZ21: 0 ~10 bar
Port Size:         1/8″
Port Thread:     BSPP, BSPT, NPT, Flange, UNF
Orifice (mm):    1.6, 2.0, 2.5, 3.0
Voltage:            DC-12V, 24V
                         AC- 24V, 120V, 240V/60HZ; 110V, 220V/50HZ
                         Tolerance: +/- 10%
Coils:                 SA11B, 9VA (AC), 8W (DC), IP65 100%ED
Material:            Body- Brass or Stainless steel
                         Sub-base-Aluminum or SUS304
                         Seal-Silicon Rubber
                         Armature Tube-Stainless Steel 304
                         Plunger- Stainless Steel 430F
                         Stop- SS430F
                         Spring- SS 304
                         Shading Rings- Stainless Steel 304
DHZ21 Series, with Coil SA11B

Port Size

Orifice

Cv

Min Pressure(bar)

Max Pressure(bar)

Valve Body

Coil

AC(9VA)

DC(8W)

1/8"

1.6

0.11

0

16

16

DHZ21161X X X

SA11B

1/8"

2.5

0.18

0

12

12

DHZ21251X X X

SA11B

1/8"

3

0.3

0

10

10

DHZ21301X X X

SA11B
