Timer controlled valve

Timer controlled valve

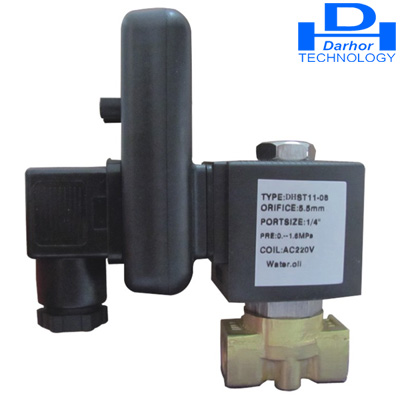

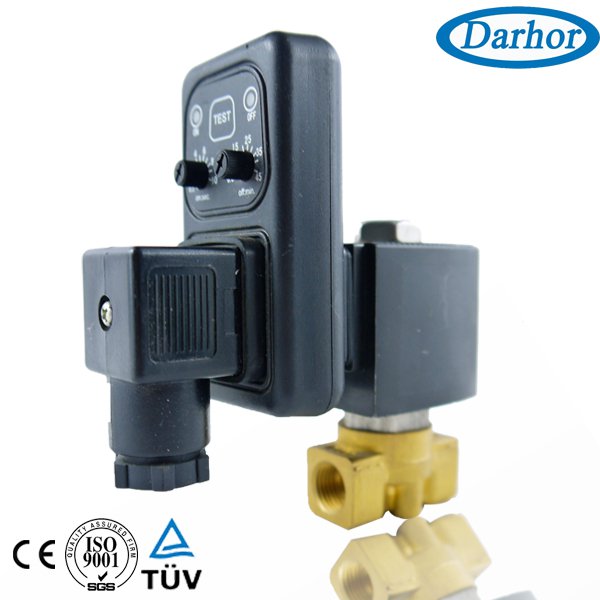

Product name:Timer controlled valve
Item:
Details:
Characteristic:With independently adjustable on and off periods,the drain solenoid valve and filter ball valve with a cyclic timer potentiometer adjust on and off periods.The on and off time is from a few seconds to 45mins,24V to 240V AC or DC available.
Medium:        Water, Air
Temperature:   NBR Seal: 14F to 176F , -10 to 80
                      EPDM Seal:  14F to 250F ,  -10 to 120
                     VITON Seal : 14F to 300F, -10 to 150
Pressure:      DHST11:0.0MPa ~ 1.6MPa
                    DHST21:0.0MPa ~ 1.6MPa
Port Size:     1/4",1/2",3/8"
Port Thread:   BSPP ,BSPT ,NPT ,Flange, UNF
Orifice (mm):  4.0,4.5
Voltage:       DC - 24V
                AC - 24V,240V@60HZ;110V,220@50HZ
               Tolerance: +/- 10%
Coils :        S21B, 22VA(AC), 15W(DC),IP65 100%ED
               NASS COIL 0543/0545 on request
Material: Body- Brass
               Seal -NBR, EPDM, PTFE or VITON
               Armature Tube - Stainless Steel 304
               Plunger - Stainless Steel 430F
               Stop - SS 430F
