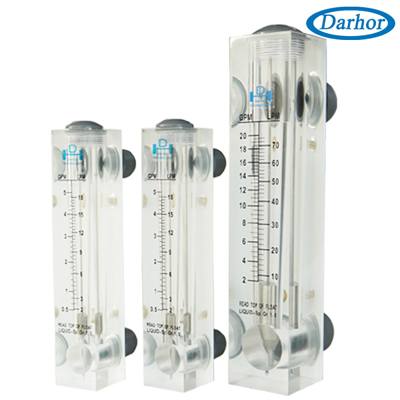

DFG-6T panel mount flowmeter(old modle:LZM-6T)

DFG-6T panel mount flowmeter(old modle:LZM-6T)


Product name:DFG-6T panel mount flowmeter(old modle:LZM-6T)
Item:USD 8~USD18
Details:
                                                                                         DFG-4T.6T.8T

Technical Parameters of DFG-4T6T8T Flow Meter

Model

Measure Range



 Screw thread





 Accuracy



ml/min(Liquid)

l/min(Gas)

 DFG-4T

6-60 8-80

40-400

0.1-1  0.2-2

0.25-2.5  1-10

1-12



directΦ6

















+4%



DFG -6T





6-60  10-70GPH



16-160  80-400



100-500  100-600

200-800  100-1000

0.1-0.8  0.1-1.5

0.3-3  0.4-4



0.5-8  1-5



1-12  2-10



2-20  3-15



3-30  4-20



5-25  6-30



10-60  10-70



0.05-0.25m3/h



    M18×1.5

G1/4"

1/4"BSP



     DFG-6

25-250

0.04-0.4 m3/h

tube

DFG -8T

2.5-25LPH



5-45LPH

6-60LPH

0.16-1.6 m3/h



0.1-1 m3/h

0.2-2 m3/h

    M18×1.5

G1/4"

1/4"BSP


The outline size of DFG-4T6T8TFlow Meter



Model

Size(mm)

A

B

C

D

E

F

DFG -4T

94

27

21

14

14

70

DFG -6T

102

30

25

20

M18x1.5

77

DFG -6

120

29

29

28

Φ9

90

DFG -8T

110

25

25

20

M18x1.5

80


The material and code of the parts of
DFG -4T6T8T Flow Meter

 With value

 Value

 Fitting

 Float

 O-ring

T- with

O- No

Brass

Ss

1 ABS

2.PP

3.PVC

4.Brass

5.Brass -chromeplate

6.SS

Ss

Acrylic

Agate ball

PTFE

1-Silicon  rubber

2-Fluorin rubber

3-Butyl
