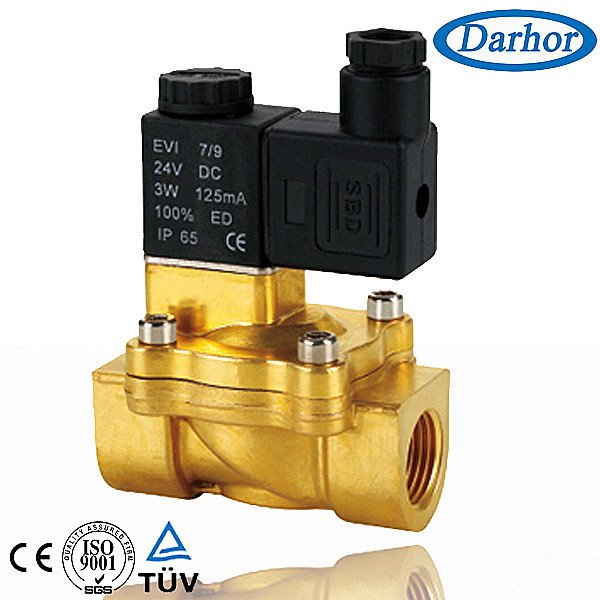

2/2 Way RSP Series Solenoid Valve,G38″~G2″

2/2 Way RSP Series Solenoid Valve,G38″~G2″


Product name:2/2 Way RSP Series Solenoid Valve,G38″~G2″
Item:
Details:

PARAMETERS

Model

RSP-10

RSP-15

RSP-20

RSP-25

RSP-35

RSP-40

RSP-50

G Connection

3/8"

1/2"

3/4"

1"

1¼"

1½"

2"

Orifice Size

mm

13

13

20

25

35

40

50

Cv Value

3.5

4.5

7.6

12

22

30

48

L

mm

66.5

66.5

75

92

122

131

165

H

mm

112.5

112.5

118

124.5

137

150

165

H1

mm

96.5

96.5

98

104.5

112

121

130

Medium temperature

-10 ÷80

Pressure

bar

Normally closed :0.513; normally open:0.5÷8

MAX. Pressure

bar

17bar

Power

AC:220V~AC:230V/50-60HZ  17VA;  AC110 ~AC:120V/50-60HZ  13VA;  DC24,11 W;  DC12  14W ;  Range:±10%











































[Note] In case use for special pressure,voltages and so on,please state with your order.

Technical Specifications

Medium:Water,Air,Gas,Oil(blow 20cst)

Temperature:-10~80

Mode of action:Pilot operated

Pressure:Normally Closed(N/C):13bar

               Normally Open(N/0):8bar

Body material:Brass

Sealing material:NBR

Protection class:IP65

Options

EPDM(E):suitable to water,hot water,gas,freon,theMAX.110;In case you choose EPDM,please state ‘E’ in your order.

Viton(V):suitable to hot water,acid,alkali,chemical salt,oil and hydrocarbon;te MAX,130.In case you choose Viton,please state ‘V’.

Note

Connection:Thread or Flange.

Thread:If different from Gconnection,it should be indicated.

Flange:If you need,please state in your order.

Pressure:In case you choose 17 bar,please state in your order.
