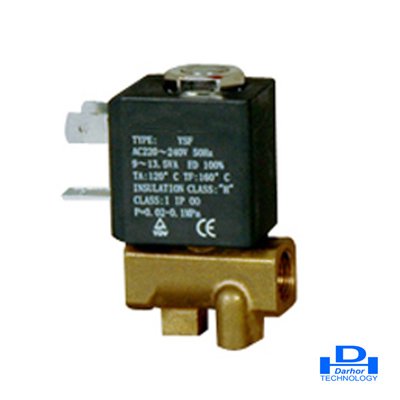

2/2 Way RST Series Solenoid Valve, G18~G14

2/2 Way RST Series Solenoid Valve, G18~G14


Product name:2/2 Way RST Series Solenoid Valve, G18~G14
Item:
Details:

Model

RST-017-06

RST-022-06

RST-028-06

RST-040-06

RST-017-08

RST-022-08

RST-028-08

RST-040-08

G Connection

1/8"

1/4"

Orifice Size

mm

1.7

2.2

2.8

4

1.7

2.2

2.8

4

Cv Value

mm

0.11

0.15

0.25

0.35

0.11

0.15

0.25

0.35

PressureAC

bar

0÷30

0÷20

0÷12

0÷6

0÷30

0÷20

0÷12

0÷6

PressureDC

bar

0÷15

0÷10

0÷6

0÷2

0÷15

0÷10

0÷6

0÷2

[Note]In case use for special pressure. voltages and so on.please state with your order.



Technical Specifications







Media:Water,Air,Oil



Mode of action:Direct acting type

Function type:Normally Closed(N/C)

Body material:Brass

Coil power:220V~230V AC/50-60HZ;DC24V;8W;

110V~120V AC/50-60HZ;DC 12V;Range:±10%

Option

Seals

Temperature

Medium

Viton(V)

-10~30

Mineral oils,gasoline gas oil,fule oils

NBR(N)

-5~80

Air,inert gas,water
