IB-ZT flange IB-ZT pressure gauge

IB-ZT flange IB-ZT pressure gauge

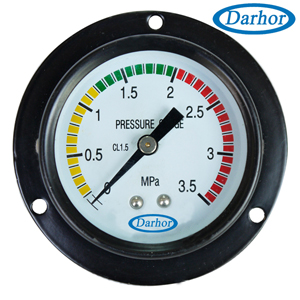

Product name:IB-ZT flange IB-ZT pressure gauge
Item:
Details:

IB-ZT flange Iro steel case, brass connection pressure gauge





Diameter:1-1/2, 2,2-1/2,3,4,6,8,10


Case:steel

Window:glass,acrylic,polycarbonate

Internal:brass,phosphor bronze,stainless steel

Inlet thread:1/8,1/4,3/8,1/2,NPT,BSPT,BSP

Connection:bottom connection,center back male connection

Range:0-10000psi

Scale:psi,bar,Mpa,Kpa,kg/cm2,Hg single or dual scale or accroding to customers order.

Accuracy:2.5%,1.6%,1%

Diameter

Model

Installation

Range

(mpa)

Thread

Case Material

Accuracy





1-1/2''

IB-40

Bottom connection

0.1 0.16 0.25  0.4 0.6     1

1.6   2.5

4      6

G1/8''

ZG1/8''

Z1/8''

M10*1

Steel

SS304

Plastic





+2.5

IB-40Z(C)

Back connection

IB-40ZT

Back connection

Steel

SS304







2''

IB-50

Bottom connection

0.1  0.16

0.25  0.4

0.6    1

1.6   2.5

4      6

10    16

25    40

G1/8''  G1/4''

ZG1/8''

ZG1/4''

Z1/8''

Z1/4''

M14*1.5

Steel

SS304

Plastic







+2.5

IB-50Z(C)

Back connection

IB-50ZT

Back connection with border

Steel

SS304

2-1/2''

IB-60

Bottom connection

0.1  0.16

0.25  0.4

0.6    1

1.6   2.5

4      6

10    16

25    40 60

G1/8''  G1/4''

ZG1/8''

ZG1/4''

Z1/8''

Z1/4''

M14*1.5

Steel

SS304

Plastic







+2.5

IB-60Z(C)

Back connection

IB-60ZT

Back connection with border

Steel

SS304







3''

IB-75

Bottom connection

0.1  0.16

0.25  0.4

0.6    1

1.6   2.5

4      6

10    16

25    40 60

G1/4''  ZG1/4''

Z1/4''

G3/8'

ZG3/8''

Z3/8''

M14*1.5

Steel

SS304

Plastic







+2.5

IB-75Z(C)

Back connection

IB-75ZT

Back connection with border

Steel

SS304





4''

6''

IB-100

IB-150

Bottom connection

0.1  0.16

0.25  0.4

0.6    1

1.6   2.5

4      6

10    16

25    40 60

G1/2''  ZG1/2''

Z1/2''

G3/8'

ZG3/8''

Z3/8''

M20*1.5

Z1/4''

Steel

SS304

Plastic







+2.5

IB-100Z(C)

IB-150Z(C)

Back connection

IB-100ZT

IB-150ZT

Back connection with border

Steel

SS304








     [Next]     [ Back ]




Related Products :
General Pressure Gauge (A)
IB-
General Pressure Gauge (A)

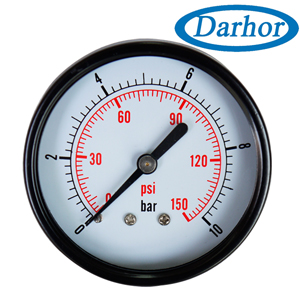

Iron steel case Prseeure Gauge
